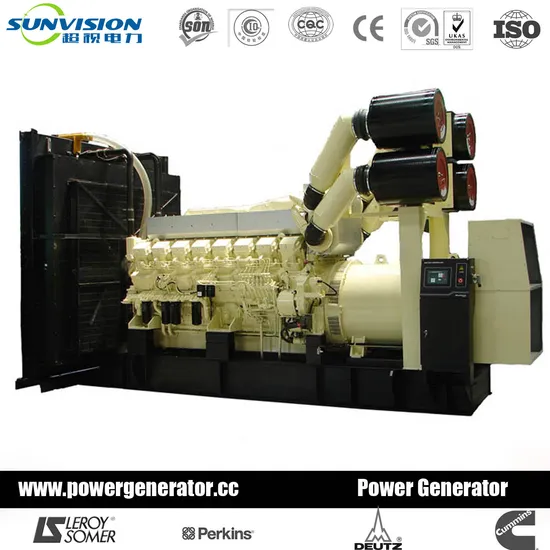

Standby Power Generator 1000kVA Soundproof Automatic Diesel Electric Generator Set for Instrial

Product Description

20kVA~1875kVA Diesel Generator set driven by DCEC and CCEC Engine-60HZ
Diesel Generator Set is very important auxiliary and emergency power supply equipment, DCEC and CCEC engines, high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.
Technical Specification for Silent Diesel Generator:
Power Factor: 0.8(lagging)
Protection Standard: IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Drop(%): ≤ 0.5
Transient state frequency deviation(%): (advertised power ) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤ 4
Waveform Distortion(%): ≤ 5
Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V, 415V/240V
Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V
Diesel Generator Features:
1. High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
2. The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
3. Compacted yet durable and dependable engine: CCEC and DCEC engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
4. Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
5. Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
6. Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.
7. Big enough free maintenance battery, world famous brand VARTA.
8. Packing with Strong and thick enough WOOD CASE to protect the gensets during long transporation.
9. Every spare parts suppliers are choosed extremely stricted, to control the quality well.
10. From engine to whole genset, we test every link of each part with testing machines in our test center, to make sure the generator will run very well at the client's site.
11. A part of spare parts are produced by ourselves, which could save cost for customers greatly.
12. Following ISO Standards and procedures to run all the business, and carry on International Standards of ISO8528 to make the generators;
13.We have more than 20 engineers and technicians to provide reliable after sales service to all of our generator sets.
QUALITY STANDARDS
VSD Power series diesel gensets offered by VSD Power Gensets are manufactured strictly accord to the ISO9001:2000 international quality management system. Our company has commanded the design of diesel gensets well with the overseas companies' great support and the years' experience.
The VC generator sets comply with all main standards, such as GB/T2820, GB1105, YD/T502, ISO8525, ISO 8528, ISO14000, ISO3046, GB755, BS5000, VDE0530, ISO3046, IEC34-1.
FACTORT TEST
Each our generating sets must be got through load test for running 0%, 25%, 50%,75%, 100% and 110% load before dispatch. All protective devices, control functions are simulated and it's system checked, proved and then passed for dispatch. A test certificate can be provided upon request.
SERVICE
BEFORE SERVICE: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds of information.
AFTER SERVICE: Guarantee for fifteen months or 1200 running hours (accord to whichever reach first) from arrival date of destination port. During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.

Genset Model	Genset Specification				Engine Specification	Dimensions LxWxH (mm)		Alternator
60HZ	Standby		Prime		Engine Model	Open Type	Silent Canopy	VC atlernator
	kVA	kW	kVA	kW
VC-G28	28	22	25	20	4B3.9-G1	1580x650x1146	2240x950x1500	SV144D
VC-G28	28	22	25	20	4B3.9-G2	1580x650x1146	2240x950x1500	SV144D
VC-G33	33	26	30	24	4B3.9-G1	1580x650x1146	2240x950x1500	SV144E
VC-G33	33	26	30	24	4B3.9-G2	1580x650x1146	2240x950x1500	SV144E
VC-G41	41	33	38	30	4BT3.9-G1	1750x750x1275	2240x950x1500	SV144G
VC-G41	41	33	38	30	4BT3.9-G2	1750x750x1275	2240x950x1500	SV144G
VC-G50	50	40	45	36	4BT3.9-G1	1750x750x1275	2240x950x1500	SV144J
VC-G50	50	40	45	36	4BT3.9-G2	1750x750x1275	2240x950x1500	SV144J
VC-G60	60	48	55	44	4BTA3.9-G2a	1850x800x1275	2440x1050x1600	SV224C
VC-G76	76	61	69	55	4BTA3.9-G2a	1850x800x1275	2440x1050x1600	SV224D
VC-G83	83	66	75	60	4BTA3.9-G2b	1850x800x1275	2440x1050x1600	SV224E
VC-G100	100	80	90	72	4BTA3.9-G11	1900x800x1275	2440x1050x1600	SV224F
VC-G110	110	88	100	80	6BT5.9-G1	2200x830x1280	2900x1050x1650	SV224G
VC-G110	110	88	100	80	6BT5.9-G2	2200x830x1280	2900x1050x1650	SV224G
VC-G125	125	100	113	90	6BT5.9-G1	2200x830x1280	2900x1050x1650	SV274C
VC-G125	125	100	113	90	6BT5.9-G2	2200x830x1280	2900x1050x1650	SV274C
VC-G150	150	120	135	108	6BTA5.9-G2	2200x830x1280	2900x1050x1650	SV274D
VC-G165	165	132	150	120	6BTAA5.9-G2	2240x850x1320	2900x1050x1650	SV274E
VC-G180	180	144	164	131	6BTAA5.9-G12	2240x850x1320	2900x1050x1650	SV274E
VC-G200	200	160	180	144	6CTA8.3-G1	2360x850x1366	3300x1100x1900	SV274E
VC-G200	200	160	180	144	6CTA8.3-G2	2360x850x1366	3300x1100x1900	SV274E
VC-G220	220	176	200	160	6CTA8.3-G1	2360x850x1366	3300x1100x1900	SV274F
VC-G220	220	176	200	160	6CTA8.3-G2	2360x850x1366	3300x1100x1900	SV274F
VC-G249	249	199	229	183	6CTAA8.3-G2	2400x980x1460	3600*1100x1900	SV274G
VC-G275	275	220	250	200	6LTAA8.9-G2	2500x1000x1520	3600x1200x1900	SV274H
VC-G300	300	240	273	218	6LTAA8.9-G2	2500x1000x1520	3600x1200x1900	SV274J
VC-G330	330	264	300	240	6LTAA8.9-G3	2500x1000x1520	3600x1200x1900	SV274J
VC-G275	275	220	250	200	NT855-GA	3000x1050x1750	4000x1350x2100	SV274H
VC-G350	350	280	320	256	NTA855-G1	3000x1050x1750	4000x1350x2100	SV274K
VC-G375	375	300	344	275	NTA855-G1B	3000x1050x1750	4000x1350x2100	SV444D
VC-G440	440	352	400	320	NTA855-G3	3000x1050x1750	4000x1350x2100	SV444ES
VC-G500	500	400	450	360	KTA19-G2	3350x1280x1935	4800x1800x2200	SV444FS
VC-G550	550	440	500	400	QSZ13-G3	3250x1360x2100	4800x1800x2370	SV444F
VC-G563	563	450	513	410	KTA19-G3	3350x1280x1935	4800x1800x2200	SV444F
VC-G625	625	500	568	455	KTA19-G3A	3350x1280x1935	4800x1800x2200	SV544C
VC-G688	688	550	625	500	KTAA19-G5	3525x1550x2030	4800x1800x2370	SV544D
VC-G750	750	600	682	546	KTAA19-G6A	3525x1550x2030	4800x1800x2370	SV544E
VC-G850	850	680	775	620	KT38-G	4200x1805x2383	6058x2438x2591	SV544FS
VC-G963	963	770	875	700	KTA38-G1	4200x1805x2383	6058x2438x2591	SV634B
VC-G1000	1000	800	910	728	KTA38-G2	4200x1805x2383	6058x2438x2591	SV634B
VC-G1031	1031	825	938	750	KTA38-G2B	4200x1805x2383	6058x2438x2591	SV634B
VC-G1125	1125	900	1025	820	KTA38-G2A	4200x1805x2383	6058x2438x2591	SV634G
VC-G1250	1250	1000	1138	910	KTA38-G4	4200x1805x2245	6058x2438x2591	SV634H
VC-G1375	1375	1100	1250	1000	KTA38-G9	4350x2090x2178	6058x2438x2591	SV634J
VC-G1438	1438	1150	1300	1040	QSK38-G5	5140x1850x2340	12192x2438x2896	SV634J
VC-G1575	1575	1260	1425	1140	KTA50-G3	5000x1850x2343	12192x2438x2896	SV634K
VC-G1733	1733	1386	1575	1260	KTA50-G9	5200x2260x2510	12192x2438x2896	SV634G
VC-G1875	1875	1500	1575	1260	KTA50-G9	5200x2260x2510	12192x2438x2896	SV734B

Genset Main Technical Data
Genset Model						VC-G1000
Prime Power						728kW
Standby Power						800KW
Frequency/Speed						50Hz/1500rpm
Standard Voltage						230/400V, Others as Application Requested
Phases						Three phases, four wires
Dimensions(L×W×H)mm						Open/Silent dimension as below list
Base Fuel tank (hour)						8~10
Alternator Specifications
Alternator Model						Brushless
ouput power						728KW
Voltage control						AVR
Number of phase						3
Power factor (Cos Phi)						0.8
Insulation Class						H
Number of Wires						6
Protection						23
Altitude						≤ 1000 m
Number of Pole						4
Exciter type						AREP
Voltage regulation						±0.5%
Totale Harmonic distortion						at no load < 4 % - on load < 4 %
Bearing						Single
Coupling						Direct
Alternator Data
♦ Operate either 50Hz or 60Hz.						♦Stator grease insulation covered
♦ Standard enclosure IP23, but IP44, IP55 for option						♦Rotator and excitation high polymer
♦ Insulation class H.						♦ Resist the corruption oil and acid
♦ Shunt excitataion systems.						♦Rotator balance is in accordance with BS5625
♦ AREP or PMG system for options.						standard 12.5
♦ Automatic voltage regulator						♦High-quality lubrication sealed long-time bearing
♦ Single bearing alternator						♦Rotator silicon steel close tight
Standard Accessories
*Auto Control Panel						*Starting Motor
*Main Ciruit Breaker						*Exhaust silencer
*Fuel tank						*Starting battery
*Base Frame						*Float battery charger
*Filter						*Flange

---
