40-50kg/H Soybeans Peanuts Rapeseed Small Screw Oil Presser Machine

Product Description

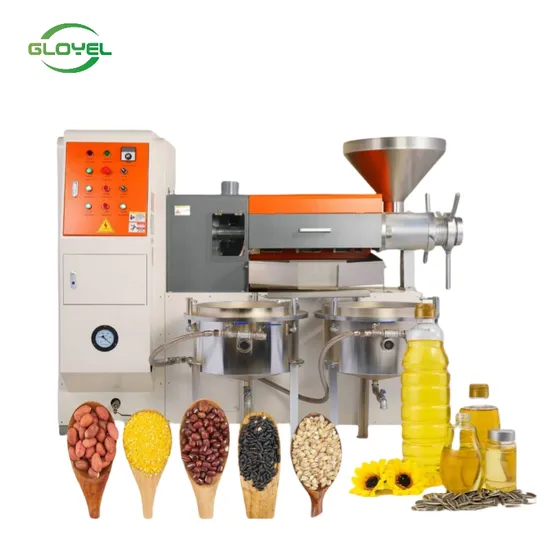

40-50kg/H Soybeans Peanuts Rapeseed Small Screw Oil Presser Machine
Product Description
1,The oil press is a machine that uses the external force of the machine to increase the temperature, activate the oil molecules, and squeeze the oil out of the oil.
2,Spiral pressing, either cold pressing or hot pressing (with cooker).
Product Parameters

Model	GYZY-60	GYZY-1685	GYZY-1688	GYZY-120	GYZY-150
Capacity	40-50kg/h	80-160kg/h	150-260kg/h	260-400kg/h	400-600kg/h
Main engine power	2.2kw	5.5kw	7.5kw	11kw	22kw
Heater power	1.5kw	3kw	3.5kw	4kw	5kw
Diameter of inscribed circle	55mm	82mm	Ø102mm	Ø122mm	Ø148mm
Speed of squeezing worms	36r/min	60r/min	40r/min	36r/min	36r/min
Diameter of squeezing worms	53mm	80mm	Ø100mm	Ø120mm	Ø150mm
Machine size	1360*950*1170mm	1700*1300*1600mm	2000*1400*1750mm	2050*1550*1800mm	2200*1460*1750mm
Packing size	1250*750*1250mm	1670*880*1720mm	2030*890*1920mm	2180*960*1820mm	/
N.W./G.W.(KG)	390/410	590/620	930/950	1000/1020	1560/1800

Other Types
1. Perforated SIngle Barrel Oil Pressing Machine
This machine is divided into two models, and the use of channel steel frame and iron plate frame two frames, because the greater the pressure, the greater the tonnage to withstand, so we must match the corresponding frame!
In addition, the higher the pressure, the faster the speed of the oil, and some raw materials, big pressure pressing time will be a little shorter accordingly.
Product Parameters

Model	6YY-230C	6YY-250C	6YY-250D	6YY-280D
Capacity	196L/H	200L/H	110L/H	196L/H
Matching power	3kw	3kw	3kw	3kw
Barrel Height	800mm	800mm	800mm	800mm
Stroke Height	800mm	800mm	800mm	800mm
Voltage	380V	380V	380V	380V
Diameter Of Piston	230mm	250mm	250mm	280mm
Diameter of barrel	600mm	500mm-600mm	420mm	560mm
Working Pressure	≤20	≤30	≤40	≤50
Working Thrust	100ton	200ton	196Ton	300ton
Total weight	1200kg	1300kg	1700kg	2350kg
Dimensions(L*W*H)	1300*1600*2300mm	1300*1600*2300mm	1300*1300*2550mm	1300*1600*2550mm

2. GY6YL-100D Oil Press Machine
The multi-stage series screw oil press produced by our company is suitable for pressing rapeseed, cottonseed, peanut, soybean, peanut kernel, flax seed, tung seed, sunflower seed and palm kernel and other plant oils. The product hopper, shield and oil pan are all made of stainless steel, with exquisite and beautiful appearance and convenient cleaning and maintenance, which meets many requirements of modern cities on environmental noise, automation and appearance. The product has small structure, strong applicability to oil, and high oil yield, which can meet the production needs with more than ten square meters. Users can save space and rent to the greatest extent.
This product uses the pressure produced by the change of the space volume of the blank (oil) in the press chamber from large to small, the driving force of the screw shaft, the resistance of the multi-disc arc curve in the press ring, the mutual extrusion friction between the blanks and other pressing forces to separate the oil from the blank and discharge it from the press ring groove in the gap of the press bar, thus completing the whole process of separating the oil from the blank.
Product Parameters

Model	GY6YL-100D	GY6YL-140D
Power(kw) 380v,50hz;3phase	11KW	22KW
Capacity(kg/h)	50-75kg/h	40-500kg/h
Screw diameter	Φ100mm	Φ140mm
Screw speed	38-46r/min	38-46r/min
Heating power	3kw	3KW
Weight	720kg	1100kg
Overall Dimensions (mm)	1850*1200*1400mm	1900*1200*1400mm

Packaging & Shipping
Company Profile
After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can also meet the special voltage demand.
5.The engineer is available to service machinery oversea. FAQ
Q1:How can I pay my order ?
-----We can accept payment through Payment terms: T/T; L/C; Western Union; Money Gram.
Q2:What's the certification of your Balers?
------CE Certification.
Q3: How to pack the products?
------We will use standard export package.
Q4:How to install after the equipment arriving destination?
------We will provide detailed illustrations for you.
Q5:How long is the warranty ?
------The warranty is 1 year ( except spare parts and artificial damage).
