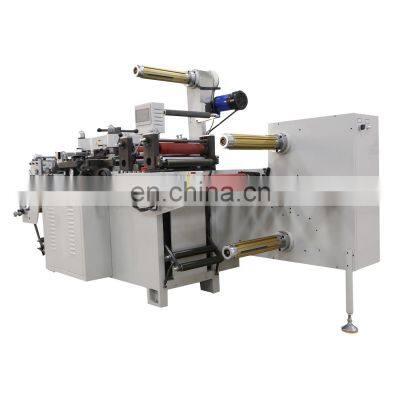

Product DescriptionFirst , Machine main technical dataA. max die cutting speed 300 cuts/minute B. die cutting area 320*300mm(width * length )C. unwind roll max diameter 500mmD. max paper roll diameter 320 mm E. left to right position precision : ±0.50mmF. Step Accuracy : ±0.10mmG. Total power : about 6.0kwH. Power Voltage: 1P 220V 50HZI. Machine Net weight about 1650kgJ. machine size(length *width * height ): 2700*1050*1400mm( Removable 1600*1050*1400mm)Second , machine configuration1 , unwinding partA. Aluminum guiding roller B. unwinding air-shaft C. unwind pulling material roller + steel roller D. unwind pulling material motor300WE. unwind damping device F. Electric Eye ( paperless automatic stop)2, laminating part ( optional function ) 1. filming device ( unwinding function )A. Filming unwinding roller 2. filming device ( unwind rewind function ) A. filming unwinding roller B. filming rewinding rollerC. filming rewinding motor D. Aluminum guiding roller 3. Rectification systemA.Aluminum guiding roller B. rectification motor 70W C. Rectification electric eye4. printed mark tracing part A. Paper platform B. Electric eye holderC. Color tracking electric eye5. punching hole part ( optional part ) 1.Mechanical type punching holeA. punching hole mold B. Connection block (connect with up die cutting plate)2. Pneumatic punching holeA. punching hole mold B. Pneumatic cylinder6. die cutting partA.Die cutting seat assembly (can move left and right – paper unwind direction)B. Main motor 2.2KWC.automatic supply oiling system ( copper tube connect wire, semi sealing type , Lubricating oil recycling )D.Buffer springE. Down cutting plate seat height adjustment ( 2 Inclined plate)F. Up cutting plate seat Obliquely turn up system ( more easy to change the cutting dies)7. Pulling material part A.pulling material roller+ steel roller B.pulling material servo motor 2.2kw(Zhejiang Dongling)C.Timing belt8. Waste scrap part A. guiding roller B. waste scrap rewind rollerC. Buffer Disposal Device - Optional function(For some thick adhesive material difficult to scrap material )9. sheeting blade partA.Aluminum guiding roller B. Cutter clutch assemblyC. up cutting blade (inserting steel) D. down cutting blade (inserting steel)10. Rewinding partA. Aluminum guiding roller B. rewinding cushioning deviceC. Rewinding pulling material rubber roller+ steel rollerD. rewinding motor 800W ( when sheeting can stop)11. Hot foil stamping part ( optional part )1. Stepper motor stamping deviceA. Hot stamping unwind roller B. Aluminum guiding rollerC. hot stamping pulling material rollerD. hot stamping pulling material motor ( stepper motor ) 2. Servo motor hot stamping deviceA. Hot stamping unwind roller B. Aluminum guiding rollerC. hot stamping pulling material roller D. hot stamping pulling material motor ( servo motor 0.75KW Zhejiang Dongling)12. electric control partA.PLC (Panasonic) B.Touch screen ( Weinview TK6070IQ)C. Servo motor driver (Zhejiang Dongling) D. Frequency speed converter ( HUALAN)E. Power switch 220-2-110( Taiwan )13. metal sheet , safety cover etc14. othersA. Tools B. Operation manual MACHINE STRUCTURE the machine has been extremely reliable , quiet and easy to useUnwinding side Below is our customer feedback REWINDING SIDEabout the machine
>>
