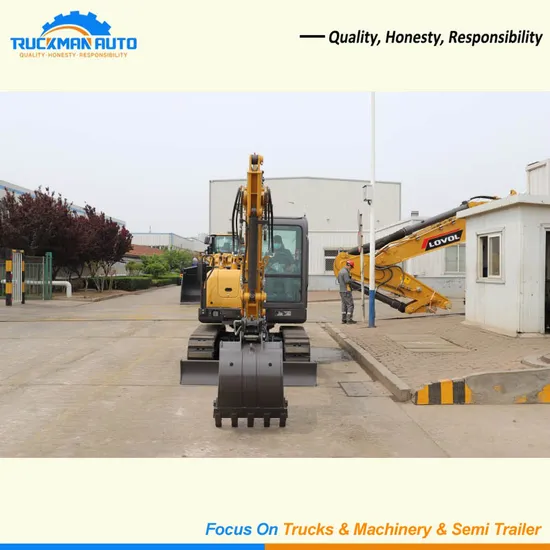

LOVOL FR60E2-H 6 Tons Crawler Excavator

Product Description

Product Introduction
LOVOL FR60E2-H Excavator Introduction
The excavator adopts high-power engine new high-power engine electronically controlled high-pressure common rail technology, precise control of fuel injection, fuel economy increased by 15%. Auto Idling The engine automatically adjusts to the auto idling state when there is no movement of the whole engine for more than 10 seconds, which further reduces the fuel consumption. Load-sensitive control system New constant power hydraulic system, load-sensitive control, fuel consumption reduced by 8%. Advanced technology, extraordinary machine performance Increase the internal channel of the main valve, thicken the pipeline diameter, optimize the pipeline direction, reduce the hydraulic loss along the way.

Product Parameters
LOVOL FR60E2-H Crawler Excavator Specification

Machine Detail
Type	Crawler Type
Performance Parameters
Model	FR60E2-H
Operating weight	6000kg
Bucket capacity	0.18-0.23m³
Dimension	6090x1950x2660mm
Engine Detail
Model	WP3.2
Related power	36.8kw/2200rpm
Maximum torque	198kgf·m/1400rpm
Oil Capacity
Fuel tank capacity	120L
Hydraulic tank capacity	90L
Body Size
Track ground length	2010mm
Total track length	2550mm
Track shoe width	400mm
Minimum ground clearance	330mm
Rear end turning radius	1700mm
Working Scope
Max. digging height	5405 mm
Max. dumping height	3770 mm
Max. digging depth	3660 mm

Product Description
LOVOL 6 Tons Crawler Excavator Description
The excavator adopts more optimized structural design, stress test, welding process and plate research to comprehensively improve the life of key structural parts; the structural parts are all subject to CAE finite element analysis, strengthened for the weak parts and made by professional structural parts manufacturers; the new design of bucket with optimized bucket shape, high dynamic digging force and higher digging efficiency. Higher machine responsiveness Through the optimization of the engine, main pump and main valve, the whole machine is agile and smooth, with better maneuverability and responsiveness.
Anti-rust Measures
FR60E2-H Crawler Excavator Waterproof Tarpaulin
When our construction machinery is being transported, it is covered with a waterproof tarpaulin, which can effectively avoid rusting. A tarpaulin is a specialized cover designed to protect goods from various external elements during transportation or storage. These tarps are made from durable and weather-resistant materials that provide reliable protection. We can customize them to fit the size of your truck or construction machinery to accommodate specific cargo dimensions and ensure a secure, tight fit. The tarp has reinforced edges and sturdy eyelets that allow it to be easily fastened to the cargo. This helps keep the tarp in place and prevents it from moving or flapping during transportation.
Production Line
FR60E2-H Excavator Production Line

Excavator is a kind of heavy construction machinery, its structure is complex, assembly and production process is rigorous, the application of automated production line can improve production efficiency and product quality. We use automated processing equipment: use CNC machine tools, laser cutting machines and other automated equipment for parts processing. Automated welding robots: for automated welding of components. Automated testing equipment: automated quality testing, such as component size testing, performance testing, etc. With the cooperation of assembly production process and automated production line, the excavator can realize high efficiency production and excellent working performance.

After Sales Service
LOVOL 6 Tons Crawler Excavator After-sales Service

We have a large parts warehouse with a wide variety of categories for various construction machinery brands, while our company has years of industry experience and technical strength to provide customers with a full range of parts solutions. We are able to provide high-quality products and a full range of spare parts support, to provide users with a safe and reliable operating experience. For the parts that customers need urgently, we can send DHL express, which only takes about 3 days to reach the hands of customers and solve their problems.

Company Profile
Company Introduction
JINAN TRUCKMAN AUTOMOBILE Co., Ltd. Was established in year 2010, that mainly focus on SINOTRUK, SHACMAN, BEIBEN, FOTON All series new trucks, and all China brand new construction machinery, CIMC and TRUCKMAN semi-trailers And full Trailers export business. The goods can meet all certificate and different work demand, such as BV, SGS, CO, CIQ, GCC, SONCAP, FORM E, ADR certificate etc, also with reasonable price. With years development, our business extended to more than 60 more countries and regions in the world like Nigeria, Angola, Ghana, Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia, Laos, Myanmar even Latin America countries like Chile, Peru...We take"Quality, Honesty, Responsibility" as our enterprise core value to make you best cooperation experience. TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission with professional services, and are committed to becoming a world-class enterprise with international characteristics.

---
