Polyester Tgic Outdoor Transparent Powder Coating for Wheel Hub

Product Description

Polyester TGIC Clear Powder, Outdoor Transparent Powder Coating for Wheel Hub
Introduction
As a representative of solvent-free coatings, powder coatings, together with water-based coatings, have become the mainstream of the development of the coatings industry in recent years. The research on powder coatings for automotive coating has been carried out for more than 20 years, and the application field was initially limited to auto parts, automotive primers, anti-rock primers, etc. It was not until the late 1990s that it was used in batches for car topcoats and covers glossy paint, becoming a real car coating.
At present, the main powder coatings for aluminum wheels on the market are wheelbase powder and overcoat transparent powder. Overcoat clear powders for automotive applications must have outstanding performance in terms of film thickness, gloss, and brightness. Must have good mechanical properties such as impact resistance, scratch resistance, and excellent adhesion. Coatings must be resistant to acid rain corrosion, temperature fluctuations, and UV rays, while complying with environmental protection and safety requirements, making production more economical while meeting quality goals. The overcoat clear powder is mainly polyester type, GMA acrylic type, etc.
The acrylic-type transparent powder has a good appearance and weather resistance, so most of the current aluminum wheel hub covers use acrylic-type transparent powder. However, the acrylic-type transparent powder has poor coverage on the corners of the aluminum wheel hub due to low viscosity and large flow, resulting in poor corrosion resistance of the aluminum wheel hub. Compared with acrylic-type transparent powder coatings, polyester-type transparent powder coatings have better edge and corner coverage and better corrosion resistance.
Key Features:
Excellent exterior exposure durability
Excellent transparency
Excellent physical properties
Excellent clarity and flowing
Application Field:

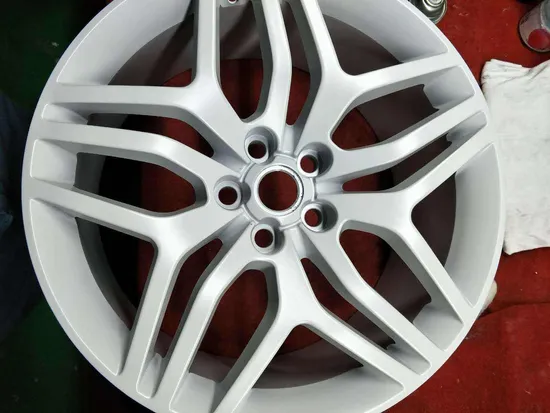

Outdoor transparent powder coating series products are based on saturated carboxyl polyester resin and TGIC curing agent as the main base materials, which can be used for thermosetting powder coatings for electrostatic spraying and fluidized bed dipping. It is a series of products specially designed for the characteristics of light coating on the surface of the aluminum wheel hub, and can also be used in the fields of External protective or decorative coatings for metal furniture, metallic and pearlescent effects, mixed colors, etc.
Properties Index

Properties	Test Standard or Method		Test Index
Gloss (60°)	ASTM D5965-96	/	≥ 100%
Impact Resistance	ISO 6272	GB/T 1732-1993	50Kg·cm
Adhesion (Cross Cut)	ISO 2409	GB/T 9286-1998	Grade 0
Pencil Hardness	ASTM D3363	GB/T 6739-1996	H-2H
Flexibility	ISO 1519	GB/T 6742-1986	2mm
Salt Spray Test	ISO 7253	GB/T 1771-1991	≥ 500h
Humidity Test	ISO 6270	GB/T 1740-1979	≥ 1000h
Light Aging Test (QUV B313)	ASTM G151	/	240h

Properties
Color: Clear
Appearance: Flat and Smooth
Density: 1.2 ~ 1.7 g/cm3
Spraying Parameter
Spraying Craft: Electrostatic spraying, fluidized bed dip coating.
Preheating Temperature: The workpiece can be preheated according to the workpiece condition and coating requirements
Curing conditions: It is recommended to bake at 180°C for 20 minutes or 200°C for 10 minutes after spraying at room temperature. Customers can adjust according to the site conditions.
Precautions
The particle size of the powder corresponding to different coating methods will be different, please make a request in advance.
Different spray thicknesses will affect color, gloss, appearance, etc.
There is a difference between the laboratory sample and the production line coating plate, and the customer needs to adjust the spraying parameters to meet the requirements.
Transportation and Storage
Carton packaging with a net weight 15Kg
Non-dangerous goods, no special transport requirements
Store in a cool, dry place below 25°C
Shelf life 3 ~ 6 months
Health and Safety
All raw materials of powder coatings do not contain toxic substances, and no toxic gas is produced during baking, but inhalation of dust should be avoided during use. Operators should wear dust masks and minimize long-term contact between skin and powder coatings. The paint attached to the skin can be washed with soap.
Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China's technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification, and QUALICOAT Certificates. Due to the excellent and stable quality, our products always enjoy a high reputation at home and overseas, and were sold to more than 30 countries.
The powder coating branch was founded in 1992, and now there are two factories (the Guangzhou factory and the Wuhan factory) with an annual production capacity of over 25,000 tons. And we have cooperated with many famous clients such as Gree, Pansonic, HITACHI, Mitsubishi, Walmart, HUAWEI, EMERSON, Hisense, Dicastal, BYD, AAG, etc.
We unremittingly stick to the business principle of "Quality is the life, adhere to first-class technology, first-class quality, first-class cost, and first-class brand". We would like to provide a complete set of services and solutions for both domestic and abroad customers and would like to go forward to a brilliant future with you together.

---
