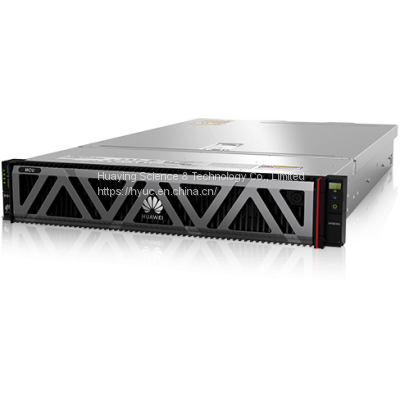

VP9800A-T Series 4K Media EngineSupporting H.265 4K30, with full encoding, decoding, and multi-stream forwarding capabilities, Huawei VP9800A-T series Multi-Point Control Unit (MCU) is a fully convergent media engine. Using H.265 Screen Content Coding (SCC) — a brand new High Definition (HD) codec that supports a resolution of up to 4K for online conferences — VP9800A-T integrates video, audio, presentations, and data to enable seamless communication and collaboration. It supports resource pool management, backup among MCUs in a resource pool, and backup between resource pools, delivering high quality conference experiences.
| Model | VP9830A-T | VP9850A-T | VP9860A-T |
| AVC Ports | 16 channel 4K30
32 channel 1080p60
64 channel 1080p30
128 channel 720p
|
42 channel 4K30
64 channel 1080p60
128 channel 1080p30
256 channel 720p
|
64 channel 4K30
128 channel 1080p60
256 channel 1080p30
512 channel 720p
|
| SVC Ports | 400 channel 1080p | 400 channel 1080p | 600 channel 1080p |
| Multiple Backups | Power supplies, chips, media cards, network ports, fans, and MCU |
| Framework Protocols | ITU-T H.323, IETF SIP |
| Video Features | Video resolution: 4K30, 1080p60, 1080p30 , 720p60, 720p30, 4CIF, CIF
Presentation/Data resolution: 4K, 1080p, 720p, 4CIF, CIF, SXGA, SVGA, XGA, WXGA, WXGA+, SXGA+, UXGA+, WUXGA+
|
| Audio Features | G.711a, G.711u, G.722, G.722.1, G.722.1C, G.729, G.729A, iLBC, Opus, AAC-LD
Supports single/dual/triple audio channels, sound localization, and wideband audio mixing
|
| Key Features | AVC universal transcoding conferencing, SVC multi-stream forwarding conferencing, or conferencing that supports both modes.
Video conferencing, data conferencing, or hybrid conferencing.
Conference cascading of up to five levels and support for SVC multi-stream and dynamic multi-channel cascading.
Voice activation, continuous presence per port, automatic continuous presence (maximum of 25 panes, special OnTable mode for triple-screen telepresence participants), and up to 63 layouts for automatic and manual continuous presence.
SiteCall: Call by URI and IP address, audiovisual IVR, or VMR, and unified access number.
|
