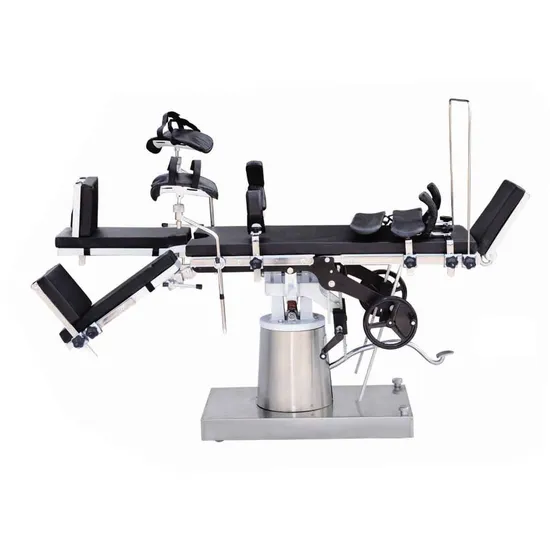

Side-Controlled Multi-Purpose Operating Table Stainless Steel Gw-3001

Product Description

Product Description Multi-purpose oprating table, side-controlled GW-3001 model
Dimensions of Table Top:
Overall length.......................................2100mm
Width.............................................…480mm
Dimensions of Sections:
Head Rest.......................................…280×325mm
Back Section.......................................500×480mm
Kidney Bridge....................................…85×415mm
Seat Section.......................................450×480mm
Leg Section.......................................500×240mm
Foot Rest.......................................…200×263mm
Table Top from Floor:
Max Height..........................................750mm
Adjust..........................................…≥200mm
Range of Movements:
Max Reversed Trendelenburg..............................… ≥300
Max Trendelenburg.......................................≥200
Max Lateral Tilt.......................................…≥180
Adjustments of Sections:
Head-Rest raised from the horizontal...........................≥450
Head-Rest lowered from the horizontal........................…≥900
Back-Section raised from the horizontal........................≥750
Back-Section lowered from the horizontal.....................…≥180
Kidney Bridge Elevation.................................≥100mm
Leg-Section lowered from the horizontal.....................… ≥90 0
Leg-Section opened.................................…≥90 0
Foot-Rest can be kept horizontally or perpendicularly to the Leg Section.
Safe working load....................................135kg Company Profile

---
