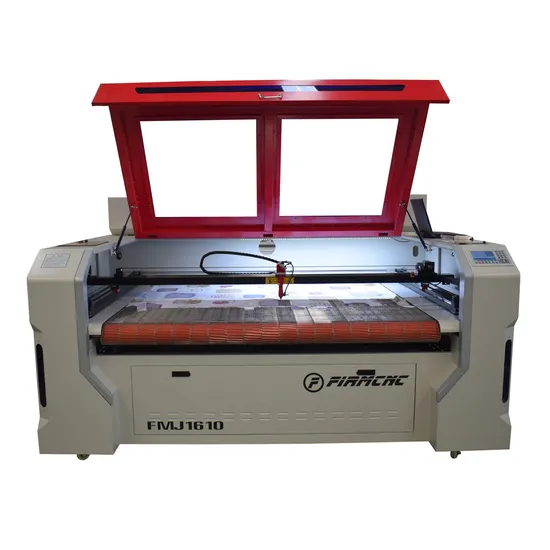

Automatic Feeding Fabric Leather Laser Cutter CO2 Laser Engraving Cutting Machine

Product Description

Automatic Feeding Fabric Leather Laser Cutter Co2 Laser Engraving Cutting Machine Product Description
New design type, FIRMCNC auto feeding fabric laser cutting machine with roller, have correction function.
FIRMCNC fabric laser cutting machine is a fully automatic feeding and automatic rolling, specially developed for the plush fabric manufacturing industry. There is no smoke during work, saving materials, no burnt edges on the cutting edge, no fluff off during cutting, and environmentally friendly work.
Advantage of FIRMCNC auto feeding fabric laser cutting machine
1.It is specially made for the garment industry and the cutting of plush fabrics. It can accurately cut arbitrary graphics on various clothing fabrics, equipped with a feeding device to realize continuous and automatic cutting of roll materials.
2.Equipped with sealing and smoking, the marking and cutting process of clothing pieces can be completed at one time, and the smoke generated during cutting can be discharged through negative pressure.
3.Negative pressure adsorption and crawler transfer table make it convenient and quick to receive and send materials. The cutting materials include various kinds of plush fabrics, non-woven fabrics, cotton and linen, chemical fibers and other materials.
Techncial speiciation

Model	FMJ9060	FMJ1390	FMJ1610	FMJ1325
Working area	900*600mm	1300*900mm	1600*1000mm	2500*1300mm
Laser type	Co2 sealed laser tube
Laser power	60w/80w/90w/100w/130w/160w/180w/280w/300w
Cutting Platform	Blade table (Optional : Honeycomb table)
Control system	RuiDa conrol sytem
Transmission Way	Shanghai Fulong Belt(Optional TBI ball screw)
Guide rails	Taiwan Hiwin linear square guide rail
Lens and Mirrors	Singapore Lens and mirrors
Cooling method	Circulating-water-cooling and protection system
Engraving Speed	0-64000mm/min
Cutting Speed	0-36000mm/min
Resetting positioning accuracy	≤±0.01mm
Minimum shaping charctor	Chinese Character: 2.0mm×2.0mm, English Letter: 1.0mm×1.0mm.
Supported graphic format	BMP, PLT, DST, DXF, AI
Operating Temperature	5°C-45°C
Operating Humidity	5-95%(Free of Condensed Water)
Working voltage	AC220V/380V
Optional Spare parts	Industrial Chiller Rotary system Up-down table Auto focus system
Laser tube working lifetime	RECI:8000h-10000h ; 10 months warranty (Counted from the date of produced).
Auxiliary devices	Exhaust fan, smoke pipe, air pump

Main parts and samples
Main configuration
1. Leadshine step motor on XY axis. It improves the precision and speed.
2. Auto feeding roller with correction function
3. Up and down distance of Z axis is 300mm
4. Combined laser beam path(you can adjust the laser according to the red dot path.)
5. The thickness of the feed material from front to back and from left to right can be up to 80mm.
6. Warm light,air gun.
Applicable materials: all kinds of cloth, leather, plush cloth, plexiglass, plastic, PVC, paper, wood and bamboo, rubber, resin, ceramics, granite and other non-metals.
Applicable industries: processing and cutting of shoe samples, hollowing and carving of shoe materials; clothing appliqué embroidery, woven labels, trademark cutting, clothing accessories engraving, punching, trimming; leather punching, lofting, cutting; plexiglass, plastic, fiberboard , PVC, paper, wood and bamboo cutting; wood and bamboo, ceramics, granite, shadow carving industry engraving.
Samples:
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including co2 laser machine, laser cutting machine, laser marking machine, laser welding machine, cnc wood router, wood lathe, mould cnc milling machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular
among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information.
FAQ
1.Can you recommend a laser machine to me ?
Yes, In order to give you a suitable laser machine,pls tell me your working area ? processing materials ? engraving or cutting ?
if cutting, what's the max cutting thickness ? Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.

---
