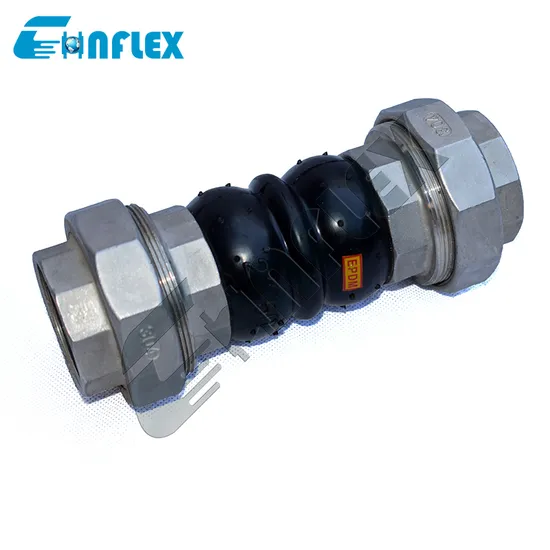

DN80 Stainless Steel Threaded Rubber Expansion Joint

Product Description

The threaded expansion joint features internal threaded couplings at both ends for connection.It is suitable for use in central air conditioning fan coils,and its increased length ensures excellent sound insulation effect.

NO	Name	Material
1	Inner/outer rubber	NR,NBR,EPDM,FKM,PTEF,IIR,CR
2	Strengthen ring	Nylon with rubber
3	Fabric	Nylon
4	Union	Stainless steel,Malleable Iron

Performance characteristics of threaded expansion joint:
1. Reduce the noise caused by pipeline pump vibration and have strong damping capacity.
2. Convenient installation and operation, simple and flexible.
3. It is an internal seamless high-pressure rubber joint made of rubber soft joint, which can effectively prevent the corrosion of high temperature resistant, acid and alkali resistant and corrosive medium in oil resistant pipeline to the inner wall of rubber soft joint and improve the service life.
4. After installation, it can absorb the lateral, axial and angular displacement caused by pipeline vibration and is not limited by the imbalance between the pipeline and the neutral flange.
Product Specification

Size		Length	Allowable Movements in Operation
mm	inch	mm	Axial	Lateral	Angular
15	0.5	200	-20~+6mm	±20mm	30°
20	0.75	200	-20~+6mm	±20mm	30°
25	1	200	-20~+6mm	±20mm	25°
32	1 1/4	200	-20~+6mm	±20mm	25°
40	1 1/2	200	-20~+6mm	±20mm	20°
50	2	200	-20~+6mm	±20mm	20°
65	2 1/2	265	-20~+6mm	±20mm	15°
80	3	280	-20~+6mm	±20mm	15°

Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.Product Details
Production Flow

1.Raw material Top level CR/EPDM/NBR rubber raw materials,No recycled rubber

2.Plasticating and mixing Special Formulation for better Bending with Nylon,For Better Strength,Sealing

3.Workblanks wraping Cooper plated steel wire reinforcement prevent pull off

4.Vulcanizing Automatic vulcanization machine ensure vulcanization time and pressure

5.Inspecting 100% strict inspection is to be responsible for consumers

6.PackagingProtective Packaging for No Rust and Breakage

Application
Threaded rubber EXP Joint have the characteristics of pressure resistance, corrosion resistance, and good sealing, and are widely used in pipeline systems in the fields of construction, petrochemicals, sewage treatment, agricultural irrigation, and electricity, ensuring the stability and sealing of pipeline connections.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certifications
FAQQ1:Can you provide drawings?
A1:Yes,we could provide drawings for you.Please contact us to get the drawings.
Q2:What' the MOQ of threaded rubber joint?
A2:1pc. We could delivery any quantity according to your requirements.
Q3:What certificates can you provide?
A3:We could provide CE,ISO certificate.
Q4:Can we get a sample?
A4:Yes,we could provide samples for you to test the quality.

---
