CNC Diamond Wire Saw Machine for Granite Mining Quarrying

Product Description

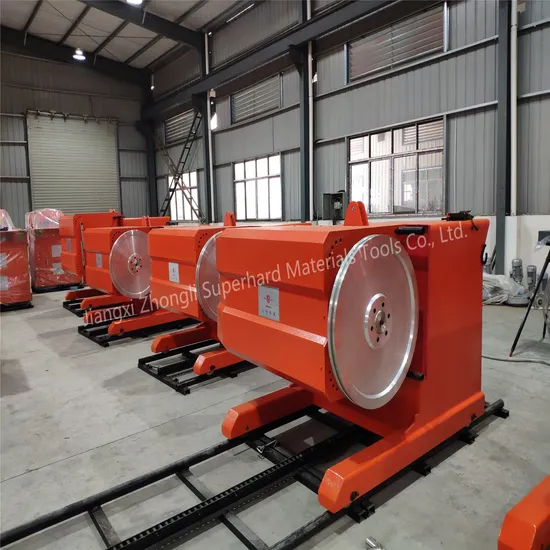

CNC Diamond Wire Saw Machine for Granite Mining Quarrying
Products Description
· Zhongli diamond wire saw machine adopts dual inverter + PLC + touch screen electronic control mode.
· The control system adopts digital communication, which makes the circuit simple, high reliability and low failure rate.
· The operating system includes Chinese and English human-computer interaction interface. The screen is clear, visualized, abundant information, real-time dynamic parameter display and operating instructions transmit the action instruction signal to the PLC through the software button in the human-computer interaction interface.
· The fault phenomenon that appears in the operation of the equipment can be automatically detected and alarmed (fault information).
· The system adopts PID process control mode, and the equipment can realize automatic adjustment of the constant tension for the diamond wire saw under the automatic control mode.
· This system can be operated with two-speed control system (high speed: 2.15m/min; low speed: 0-0.358m/min), which can meet all working conditions.
· In order to meet the demands of different customers, this product is equipped with high and low grade machine, users can choose the suitable products according to their own conditions.
· General-purpose (This product that contains Chinese and English operating interface can be adapted to domestic and international market and can also be used different models of machine with different power).
· The high grade machine with redundancy facilitates the upgrading of products.
· The good compatibility, meaning the follow-up upgrade version can be compatible with the previous high-end general-purpose product, demonstrate a good continuity.
Advantage:
· Stable quality with reasonable price
· Low energy consumption and long life
· SGS/ISO certificate
· OEM/ODM
· Strictly raw material source and production quality control ensure stable quality.
Specification

Diamond wire saw machine parameter
Equipment Model	MWQ-37AT	MWQ-45AT	MWQ-55AT	MWQ-75AT
Main Motor Power(KW)	37	45	55	75
Driving Wheel Diameter(mm)	800	800	800	1000
Length of Wire Saw(m)	20-80	20-100	20-120	20-150
Diameter of Wire Saw(mm)	≤11.7
Flywheel Speed(m/s)	0-40
Walking Speed(m/h)	0-90
Rotation Angle	360°
Walking Length(mm)	1900			2050
Length of Guide Rail(m)	4*2m
Environment Temperature(ºC)	-15~+40
Equipment Power Supply	AC380±20%V 50HZ
Machine Dimension(mm)	2000*1300*1500			2200*1450*1650
Net Weight(T)	2.2	2.3	2.5	3

Products Details
Application in quarry
Application methods
Packing Details

Shipping
1. Delivery time
For sample, 7-15 working days once payment confirmed.
For bulk, depends on the quantity.
2. Shipping Method
For sample order which is less 45kgs, Express will be a better choice. (DHL, UPS, FedEX, TNT, etc.)
For normal order which is 45-100kgs, Air Freight will be a better choice.
For normal order which is above 100kgs, Sea Freight will be a better choice.
Customers Distrubution & Exhibition
Zhongli company has cooperated with more than 50 countries such as India, Brazil, Russia, Italy, United States, South Africa, Egypt, Pakistan, Indonesia, Thailand, etc.
Our principle is "Customer spread to all over the world, benefits reach to everyone", we use the quality material to make the best guarantee.
FAQ:
Q1:Are you a factory or trading company?
A1:We are factory. If you have time, welcome to visit our factory.
Q2. How is your quality?
A2. We have a very seriously control system. We guarantee the high performance of our products.
Q3. If we need technical support, can you offer us?
A3. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.
Q4. How can we be your agent in our country?
A4. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.
Q5. Do you offer free samples?
A5. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Q6. Is there cheap shipping cost to import to our country?
A6. For small order, express will be the best choice; for bulk order, sea way is best but take longer time; for urgent orders, we suggest shipment by air or by express.
Q7. When you can reply to me when I send you an Inquiry?
A7. We promise to reply within 24 hours on receipt of your inquiry on working days.
