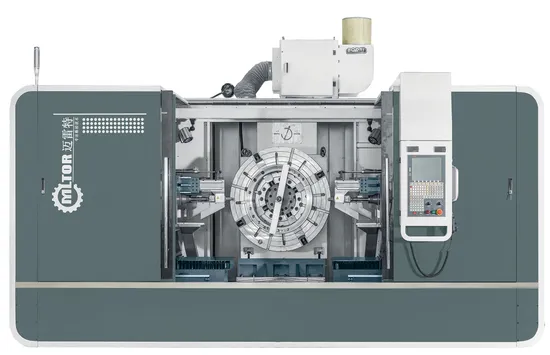

Automatic CNC 4-Spindle Pellet Ring Die Deep Hole Gun Drilling Machine for Hole Size 1.2mm to 5.5mm (MLT-SK4H800I)

Product Description

4-spindle of NC pellet ring die deep hole gun drilling machine
Technical description
1.high performance price ratio classic machine.
2.intelligent control,stable and reliable.
3.humanized operation,easy to learn.
4.the preferred machine of ring die manufactures.
5.Ring die dedicated drilling system MLT-Z228i.Mature hardware and software programming,the relevant parameters of the hole through the CNC system interface can be filled.
6.MLT series of motors,with anti-oil,engage in corrosion and so on.
Parameter description

Processing specification
Number of spindle axis	4-axis
Drilling diameter	1.2mm-5.5mm
Maximun drilling thickness	≤150mm
Maximun diameter of ring die	Ф1100mm
Spindle travel range	≤550mm
Spindle pitch range	50~150mm

Processing speed
Drilling box spindle maximum speed	15000r/min
Feedrate range	≤1500mm/min
Fast forward speed	≤6000mm/min

Precision of processing
Drilling degree of skewness	≤1/1000
Drilling hole size precision(refer marl 45,thermal refining)	IT7~IT10
Drilling hole roughness(refer marl 45,thermal refining)	Ra0.3~Ra0.8

Main device capacity
Total power of machine tools	22kw

Hydraulic system
Maximun flow	60 I/min
The highest pressure	15MPa
Filtrarion accuracy	10um
Machine oil storage	1100L

Size and weight
Floor space(L*W*H)	3700mm*2000mm*2700mm
Host weight	10000kg
Hydraulic system weight	20000kg

The picture of machien feature

---
