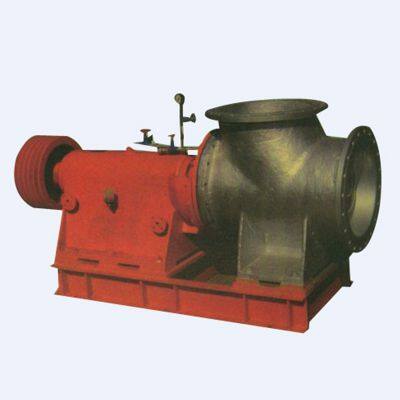

| Chemical Pump（HZW） |
| Applications ： HZW series chemical axial flow pump is mainly used in large flow and low head of the occasion, forced circulation system is especially suitable to salt, alkali production; can transfer temperature for various strong corrosive medium, the 0~180 C. The range of performance Model Q（m3/h) H (m) HZW250 200~250 2 HZW300 500~700 2.75~3.5 HZW350 800~900 4.8~5.5 HZW450 1500~2000 4 HZW500 2500~2800 4 HZW600 3000~3500 4 HZW700 4000~6000 3.5~4 HZW800 5000~8500 1.1 HZW900 8500~10000 3~3.5 Commonly materials ： 304、304L、316、316L、904、904L、CD-4MCu、 haynes alloy, cast steel, cast iron and other materials should be based on the specific use of the transport medium. Design features It is cantilever structure, according to the different process parameters the pump can be used straight, bend or volute type, bearing cooling water to cool the bearing box. The transmission method can be direct coupled drive or belt drive. According to the process requirements of the mechanical seal with double end mechanical tandem seal, packing seal or the deputy impeller and mechanical seal, packing seal form. |
