| ELECTRIC BIKE |

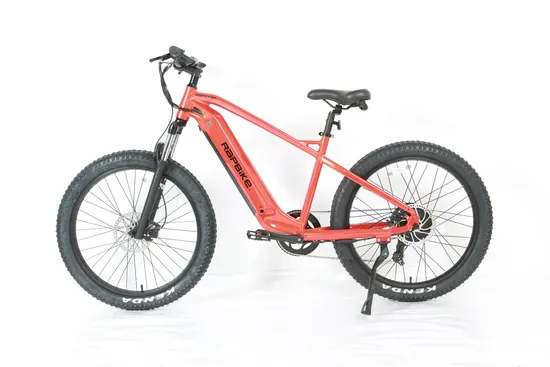

| MODEL NAME | RAPSTAR |
| ELECTRIC SPECIFICATIONS |
| ITEM | DESCRIPTION | SUPPLIER |
| BATTERY | 48V*15AH Lithium Battery 21700,normal BMS | Aigeni |
| MOTOR POWER | rear hub motor 48V750W | SY |
| CONTROLLER | 48V25A | LS |
| CHARGER | 48V3A | Sans |
| DISPLAY | KD716 LCD | Key-disp |
| ITEM | DESCRIPTION | |
| CHARGE LIFE | 4-6hour | |
| RECHARGING TIME | 800-1000times | |
| MAX SPEED | 45km/h | |
| DISTANCE FOR CHARGE | | |
| NET WEIGHT | | |
| GROSS WEIGHT | | |
| PACKING SIZE | | |
| 40" HQ(PCS)/20" GP(PCS) | | |
| BICYCLE SPECIFICATIONS |
| ITEM | DESCRIPTION | SUPPLIER |
| FRAME | AM2659,26" | HJ |
| FORK | Alloy ,suspension fork | Trama |
| REAR DERAILLEUR | Shimano tourney 7 speed | Shimano |
| SHIFTERS | Shimano |
| FREE WHEEL | Shimano |
| FRONT BRAKE | Hydraulic disc brake | Gemma |
| REAR BRAKE | Hydraulic disc brake | Gemma |
| PEDALS | alloy black with mark "L""R" | Wellgo |
| RIMS | DP-45*26*13G*36H front ,DP-45*26*12G*36H rear | HJC |
| TIRES | 26*3.0,black | Kenda |
| SPOKES | stainless steel ,13G*253mm,12G*217/215mm | SDL |
| REFLECTOR | 722SC meet CPSC | Satelite |
| HANDLEBAR | 700, black meet EN15194 | Promax |
| STEM | alloy,black meet EN15194 | Promax |
| GRIP | black, L:130MM R:90MM | XHH |
| HEADSET | 28.6*44/30*56 | Neco |
| SEATPOST | 30.4*2.6T*350mm,ALLOY | Promax |
| SEATPOST CLAMP | 327QA ยข34.9 ALLOY | Promax |
| SADDLE | Black | Justek |
| FRONT/REAR LIGHT | Without/ can add if needed | |
| CHAIN | #Z8.3 1/2*3/32*126L/ grey | KMC |
| KICKSTAND | CL-TA45,black | Massload |
| CRANKSET | Black,44T | HSM |
| BB | black | Neco |
