Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000
Dimension(Lxhxw)
8700X 2500X 3880 mm
Min. Turning Diameter
16 M
Fuel Consumption
Below 38L/100km
Engine Dispalcement
7.684L
Rated Power/Rev Speed
202kw/2200rpm
Transport Package
According to The Shipping Demand
Specification
8 m3 concrete mixer
Production Capacity
5000PCS Per Month
Product Description
Benefits & features

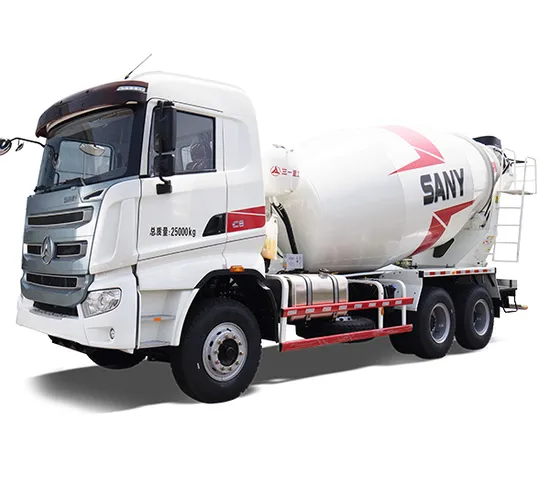

Sany mixer truck SY308C-8(R Dry) with 8 cubic meter mixing capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability and high strength. The 8 cubic meter mixer truck can adapt to varied harsh conditions and improves its service life.
Specialised Cab
- Safe and Reliable
The framework structure and body welding are done by robot, offering the strictest regulation and certification on front collision and top pressure. The instrument panel and rearview mirror design is superior to the national standard, and there are no dead angles in the all-directional range of view.
- Anti-fatigue and shock-absorbing
With a four-point full-suspension shock absorption cab and double-layer door sealing and noise reduction technology, the shock absorption effect of the cab matches the best models from Europe, America, and Japan. The cab mitigates fatigue from a bumpy drive, allowing you to work easier and longer.
The cab also keeps noise to a minimum and is aesthetically pleasing to the eye with red and black interior trim. The steering wheel is also equipped with the latest Bluetooth technologies.
- Convenient, Quick Maintenance
The cab is able to tilt at large angle, so parts such as the engine and gearbox can be lifted out of the cab for maintenance. The front-mounted air conditioner can also be easily repaired by opening the front panel.
- Elegant Style
The components have been elegantly designed with titanium and silver-inlaid interior trim, instrument panel, and high-quality seats, enabling you to work in style and comfort.
Energy-saving Technology
The engine is capable of running in dual-power, allowing it to adapt to different working conditions. With mixer truck matching technology, fuel consumption decreases by 10%.
Low Deck Technology
The series' unprecedented "no sub-frame structure" drops the truck's deck by 140mm to 200mm. Years of investment in R&D has yielded an optimal frame structure that gives it stability and reliability.
Flexible Steering Technology
By using a large-displacement power steering oil pump, the necessary operating force decreases by 40% and steering is facilitated. We've optimized the chassis pipeline and front axle's steering angle, decreasing the mixer truck's steering diameter by 15%. This gives you more control over even the smallest details of your mixer truck.
Anti-Buildup Technology
The built-in three-section folded blade helps increase the discharge glide angle, decreasing buildup. In addition, a flushing device, innovative front taper and bal-crown connecting structure are installed at the rear taper to clear stagnant aggregate in the dead space and to prevent aggregate from piling up at front and rear tapers. With this, the residual rate at the discharge port declines to 0.4%.
Smart Operating Technology
The truck is equipped with a GPS system, mixer truck monitoring, record playback, event alarm, truck management, and statistics. You can instantly monitor the mixer truck's location, oil level, and discharge.
Maintenance Reminders
The C8 series offers a maintenance alarm service for the truck's key components (including the engine, axles, gearbox, and others) to help you stay on top of truck maintenance and minimize any potential damages.
| More Models |
| SY204C-6 4m3 | SY306C-6 6m3 | SY308C-8 8m3 | SY308C-8(R) 8m3 | SY308C-8(R Dry) 8m3 |
| SY309C-8 9m3 | SY310C-8 10m3 | SY310C-8(R) 10m3 | SY310C-8(R Dry) 10m3 | SY412C-8 12m3 |
>>
