Plastic Rectangular Trays Thermoforming Machine

Product Description

Product Description

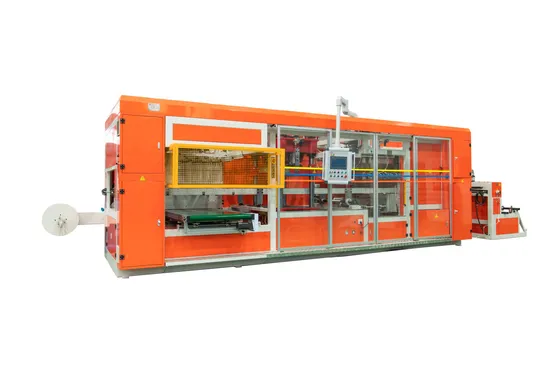

High Speed Plastic Box thermoforming Machine BOXU-7160

1- Max. Forming Area	710× 600mm
2- Max. Down Forming Stroke	150mm
3- Max. Up Forming Stroke	150mm
4- Sheet Thickness	0.20-2.5mm
5- Max. Forming Height	120mm
6- Max. Roller Diameter	Φ 1200mm
7- Air Pressure	0.6-0.80mpa
8- Air Consumption	3000L/min
9- Max.Speed	35Cycles/min
10- Power (Three Phase Four Wire)	380V/440V 50/60HZ
11- Heating Power	120kw
12- Main Motor Power	16kw
13- Feeding Motor Power	4.5kw
14- Scrap Rewinding Motor Power	0.55kw
15- Machine Weight	11000kgs
16- Dimension	9000× 3650× 3500mm

Applicantion:
BOXU-7160 Plastic forming Machine is suitable for high quality PP,PET,HDPE,CPLA,PS and other thermoplastic sheets to produce various high-grade thermoforming products.

Company Profile
NANTONG BOXU TECHNOLOGY CO.,LTD. has been specializing in manufacturing thermoforming machines for 15 years. As one of the China largest thermoforming machine factory we have a footprint that touches nearly every pharmaceutical packaging industry,food packaging industry,electronic industry,automobile industry and home appliance.

Cooperating with many famous suppliers, my machines are popular with China domestic market and South-East of Asia, East Europe, Latin America.

Detailed Photos

Packaging & Shipping

FAQ
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your factory mainly in?
A: We are mainly produce Thermoforming Machine for over 15 years.
3. Q: How's your strength of your factory?
A: We have a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed ISO.

---
