Product Description
Product Description

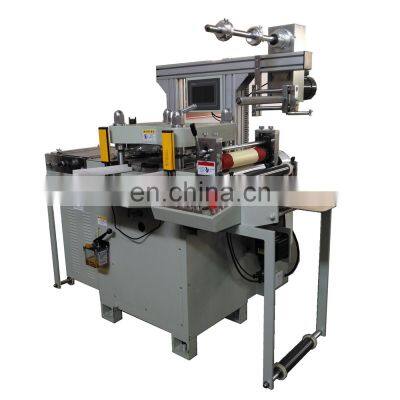

DP-320 Automatic Flatbed Die Cutting Machine for Self Adhesive LabelAdhesive Label, Foam Tape, Film Automatic Hot Stamping Punching Die-Cutting Machine Main Technical Parameter: ModelDP-350BDP-420BCutting speed20-200 (t/m)20-200 (t/m)Max unwinding diameter450mm450mmMax web width320mm420mmMax mould cutting area320x300mm415x450mmOrientation accuracy±0.10mm±0.10mmMotor power3kw4kwPower voltage220v±10%380v±10%Machine weight2200kg2800kgMeasurement2600x950x1400mm2600x1050x1800mm Feature:The machine enjoys multi-layer sticking ,partial sticking, feeding- filming-die cutting- waste draining- slitting-rolling, all of them are completed by the computer control by one turn.Charateritics:1. The machine enjoys multi-layer sticking, partial sticking, feeding- filming-die cutting- waste draining- slitting-rolling2. All of them are completed by the computer control by one turn.Applicable Material:1. Sticky production: Diversified electronic, electrical appliance, special mobile phone rubber cushion, silicon rubber cushion, magic tape, electric conductive tape, powerful double side adhesive, SUNEAST 3M, Sony special binding products.2. Dustproof materials: Cosmetic cotton, camera cotton, high density sponge, filtering sponge, dust net and non-woven fabric3. Shock absorbing products: EVA tape, rubber cushion, PORON cushion, 3M, inflammable retardant EVA, high foam4. Insulation, EMI: Fireproof paper, aluminum foil, copper foil, PVC, PET, brown paper, sponge sheath, pearl cotton sheath5.Heat insulation material: Silicon sheet, transparent mica, fiber cloth, heat insulation cotton (fabric)Optional Configurations:1. Hot stamping2. Punching3. Laminating4. Adding conveyor belt5. Full-cut for die cuttingAfter-service:1. Warranty for machine: 12months2. After-service: A reply within 24 hours3. A free training in our factory available before delivering machines ModelDP-320BIIDP-420BIIMax Feeding Width (mm)320420Cutting Area (mm)300*300400*400Cutting Speed (T/M)30-17030-170Position Accuracy (mm)±0.10±0.10Power of Main Engine ( kw )2.23Size ( mm )2300*1250*15002550*1450*1650Voltage (V )220380 Functional characteristics:This machine enjoys multi-layer sticking, partial laminating, multi-strip tape laminating, etc. The imported motor is used for the receiving (separating) bottom sheet of sticking film. Feeding-filming (enjoying multi-layer laminating and partial laminating)-die cutting-waste draining-slitting-rolling, all of them are completed by the computer control by one turn. Materials can be fed with a conveyor belt, and die-cut to cut fully. Scope applicable:Various insulating materials such as electronic shield materials, PVC, film, Mylar, copper foil, aluminum foil, foam, etc
>>
