High Strength Flame Retardant Steel Wire Conveyor Belt

Product Description

Product Description:
"DONGXUMING" Steel wire rope conveyor belt is designed according to the highest standards in the industry. It is made of steel wire as the skeleton, by rolling, forming, curing and other processes. Steel wire rope conveyor belt has the advantages of large tensile strength, good impact resistance, long life, small elongation, good troughing, good bending resistance, suitable for long distance, large travel, high speed conveying materials. The product is composed of core glue, wire rope, covering layer and edge glue. Steel wire rope conveyor belt is suitable for material conveying under the condition of anti-tear in coal mine, mine, port, electric power, metallurgy, building materials and other industries.

Product Features:
-Allow the use of high strength, high safety factor.
-Minimal elongation, short tensioning distance.
-Steel wire rope and rubber combined firmly, excellent dynamic performance
-The belt body is soft, good troughing and good linear running
-Excellent impact resistance
-Reliable joint, long service life
Manufacturing standa:
GB/T7984, MT/T914, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
Product application:
Suitable for coal mine, mine, port, electric power, metallurgy, building materials and other industries require tear proof conditions of material transportation, can be used for long distance, large span, large volume and high speed material transportation.
Product Parameters:

	ST/S 630	ST/S 800	ST/S 1000	ST/S 1250	ST/S 1600	ST/S 2000	ST/S 2500	ST/S 2800	ST/S 3150	ST/S 3500	ST/S 4000	ST/S 4500	ST/S 5000	ST/S 5400	ST/S 6300	ST/S 7000	ST/S 7500
Longitudinal Tensile Strength(N/mm)	630	800	1000	1250	1600	2000	2500	2500	3150	3500	4000	4500	5000	5400	6300	7000	7500
Maximum nominal diameter of wire rope(mm)	3.0	3.5	4.0	4.5	5.0	6.0	7.2	7.5	8.1	8.6	8.9	9.7	10.9	11.3	12.8	13.5	15
Rope spacing(mm)	10	10	12	12	12	12	15	15	15	15	15	16	17	17	18	18	20
Thickness of upper covering layer(mm)	5	5	6	6	6	8	8	8	8	8	8	8	8.5	9	10	10	10
Lower cover thickness(mm)	5	5	6	6	6	8	8	8	8	8	8	8	8.5	9	10	10	10

Width specification(mm)	Minimum number of wire ropes
800	75	75	63	63	63	63	50	50	50	50
1000	95	95	79	79	79	79	64	64	64	64	64	59	55	55	48	49	45
1200	113	113	94	94	94	94	76	76	76	77	77	71	66	66	58	59	54
1400	133	133	111	111	111	111	89	89	89	90	90	84	78	78	68	69	63
1600	151	151	126	126	126	126	101	101	101	104	104	96	90	90	78	80	72
1800	171	171	143	143	143	143	114	114	114	117	117	109	102	102	88	90	82
2000	196	196	159	159	159	159	128	128	128	130	130	121	113	113	98	101	91
2200	216	216	176	176	176	176	141	141	141	144	144	134	125	125	108	111	100
2400	236	236	193	193	193	193	155	155	155	157	157	146	137	137	118	121	109

Grade	Tension Strength N/mm Min	Elongation at Break % Min	Max. Abarsion mm3
H	24	450	120
D	18	400	100
L	15	350	200
K	15	350	200

Note: 1. K means flame resistance and anti-static resistance.
2. DIN K with 20 mpa tension strength, abrasive 250 mm3 available.

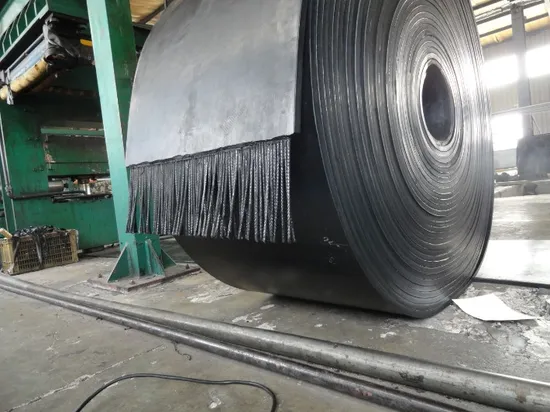

Product detailed photos:

· Hebei Dongfeng Rubber Belt CO.,LTD ·
Hebei Dongfeng Rubber Belt Co., Ltd., established in 1980, is a comprehensive high-tech enterprise integrating R&D, production, and sales of various conveyor belt products.The company has garnered certifications including Quality Management System (QMS), Environmental Management System (EMS), Occupational Health and Safety Management System (OHSMS), as well as Mining Product Safety Mark Certification.
It operates within a 30-acre facility, boasting a robust technical staff of 60, including one senior engineer and five senior technicians, with a total of ten professional technical personnel. The company maintains ten large-scale production workshops, such as rubber refining, weaving, rolling, molding, vulcanization, power, and machinery repair, equipped with approximately 20 sets of state-of-the-art tape production equipment.It continuously introduces new technologies and equipment to meet the evolving demands of the industry. Currently, the production capacity reaches ten million square meters, supported by the company's on-site verification facilities.
It continuously introduces new technologies and equipment to meet the evolving demands of the industry. Currently, the production capacity reaches ten million square meters, supported by the company's on-site verification facilities.The company's products are characterized by superior performance, with the coal mine flame retardant belts showcasing properties such as flame resistance, anti-static, impact resistance, tear resistance, anti-delamination, and extended lifespan, highly regarded in the coal industry. These products find extensive application in sectors such as coal, metallurgy, cement, electric power, building materials, chemicals, and food.Product Quality Inspection:
More production & products details:
FAQ:
Q1. Are you a manufactuer?
Yes, we produce Rubber conveyor belts and conveyor rollers over 44 years.
Q2. What is the lead time?
10 days for bulk order production.
30 days for container order production.
If urgent,we have green channel.
Q3. How to pay?
1. T/T or L/C through bank account
Q4. How about package?
1. Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2. Outer is packed with one ply water-proof PP fabric
3. With steel pallet on the bottom

---
