Sk-4.5D Liquid/Water Ring Vacuum Pump for EPS Foam Machine

Product Description

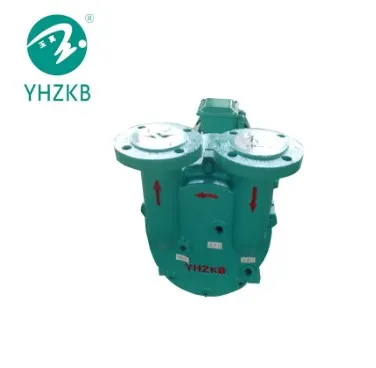

SK-4.5D liquid/water ring vacuum pump for EPS foam machine
Product Description:
SK-D series Liquid ring vacuum pumps are based on SK-A vacuum pump ,which added flange interface is easy for customers' using and fixing.This kind of pump have solved the problem that when absorbing losts of water ,can not work continuously,makes lots of dirts because of bad water,can not start to work beacuse of stopping working for a long time.It used widely on soaks modelling machine and piece membrance equioments.Items:SK-2D, SK-3D ,SK-4.5D ,SK-6D,Motor Power:4~11KW ;Capacity:2-6M3/min Ultimate vacuum:-0.095MPa
Technical Parameters:

Model	Motor Power (KW)	Suction capacity (m³/min)	Limitvacuum		Inlet&Outlet	Speed (r/min)	Weight (Kg)	Size (mm)	Operating liquid flow rate (L/min)	Noise dB(A)
			(-Mpa)	Torr
SK-0.15A	0.55	0.15	0.095	47	G3/4"	2825	23.5	381x170x217	2~5	<72
SK-0.3A	1.1	0.3	0.095	47	G1"	2840	33	460x180x235	5~9.5	<75
SK-0.5A	1.5	0.5	0.095	47	G1"	2840	34	485x180x235	5~10	<75
SK-0.8A	2.2	0.8	0.095	47	G1"	2840	37	480x185x235	5~10	<75
SK-1.2A	3.0	1.2	0.095	47	G1 1/2"	2860	51.5	528x218x260	3~8.5	<80
SK-2A	4.0	2.0	0.095	47	G1 1/2"	2880	63	560x220x286	3~9	<80
SK-2C	4.0	2.0	0.098	25	G1 1/2"	2850	63	560x220x286	3~9	<80
SK-2D	5.5	2.0	0.095	47	50mm	1440	113	668x340x359	10~36	<80
SK-3A	5.5	3.0	0.095	47	G2"	1440	105	645x310x338	10~36	<80
SK-3C	5.5	3.5	0.098	25	G2"	1440	107	665x310x338	10~36	<80
SK-3D	5.5	3.0	0.095	47	50mm	1440	118	688x340x371	10~36	<80
SK-3E	5.5	3.5	0.098	25	50mm	1440	120	706x340x371	10~36	<80
SK-4.5D	7.5	4.5	0.095	47	66mm	1440	150	800x380x388	10~36	<80
SK-4.5E	7.5	4.5	0.098	25	66mm	1440	150	800x380x388	10~36	<80
SK-6D	11	6.0	0.095	47	66mm	1460	198	854x380x425	10~39	<85
SK-6E	11	6.5	0.098	25	66mm	1460	198	854x380x425	10~39	<85

Our Advantages: 1,Direct connected ,simple structure,small volume
2,Impeller material:alloy copper whole casting (made by ourselves)
3,Pump chamer coating treatment,anti-scalling
4,Adopt custom anti-corrosion mechanical seal
5,All motors are certified by CE and manufactured by self to ensure their quality
6,We have a complete set of microcomputer controlled testing system (All products are subject to inspection.)

Applications:
It is widely used in all kinds of plastic extrusion lines and EPS foam machine
Company overview:
Established in 1986, our company has been focusing on the development and manufacture of vacuum pumps and water pumps.We are a comprehensive pump company integrating production, sales and after-sales maintenance services.
The main products include liquid ring vacuum pumps;rotary vane vacuum pumps;roots vacuum pump;centrifugal water pump and customized vacuum pump system,which are widely used in all kinds of plastic extrusion line;medical and pharmaceutical industry(autoclave sterilizer/capsule filling and sealing machine);food-related industry(beverage machine/milking machine/sugar plant);chemical industry;power plant;coal mine etc.
Packaging & Shipping: Packaging:
Standard export polywooden cases.
Customized packaging can be available.
Shipping:

Shipping method	Note
Express	Door to door, very convenient, don't need customs clearance or pick-up.
By air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port.

Our services:
Pre-Sales Service
Provide 24-hour reply.
Provide suitable models according to clients' requirements.
Provide detailed product specifications and reasonal prices.
In-Sales Service Supervise whole production time.
Provide product's testing performance curve to customers.
Provide inspection pictures to customers after we finish production.
After-Sales Service Provide installation manual.
Under correct installation, normal maintenance and using,we guarantee one-year warranty.
If product has malfunction,we'll reply you within 24 hour and provide solution or even send technical staff to spot after receiving maintenance notification.
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer of vacuum pumps and water pumps in China since 1986.
2. Q: What's your MOQ?
A: One set is ok.
3. Q: What's your payments terms?
A: T/T, Western Union......
4. Q: What certificates do you have?
A: CE, ISO 9001 ....
5. Q: How about the warranty?
A: 12 months warranty since delivery.
6. Q: What's the delivery time?
A: For different models,different motor specs and different material,delivery time is different,please double confirm with our sales team.
7. Q: Can you do OEM brand?
A: Yes, welcome.
8. Q: Quality reliable?
A: We have whole testing system controlled by micro-machine,testing performance curve can be sent to clients before arrange delivery.

---
