US$3,000.00-7,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Spindle speed
80~5440rpm 16steps
Spindle taper
R8/ISO30/ISO40
work table
1270*254/ 50"X10"
Specification
1750*1500*2100
Trademark
Hercules or OEM
Production Capacity
20000sets/Year
Product Description

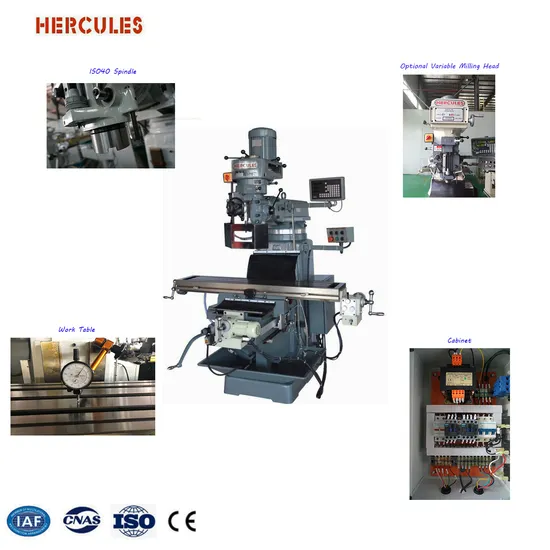

M4VA Turret Vertical Milling Machine
Precision High Accuracy Series
Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Plastic Cover
Optional parts:
3-axis DRO
X-axis ALSGS power feed
Y-axis ALSGS power feed
Z-axis ALSGS power feed
X,Y,Z Mechanical power feed
Air draw bar
Variable speed milling head
6" Machine vice
Separately operate panel box
Specification:
| Model | M4VA | M4VB |
| | Precision High Accuracy Series |
| Table size(L*W)(mm) | 1270x254 | 1270x254 |
| Max.load of table (kg) | 300 | 300 |
| X axis(mm) | 900
810 with power feed | 900
810 with power feed |
| Y axis(mm) | 380 | 380 |
| Z axis (mm) | 360 | 360 |
Work table T slot
(No.-size*pitch) (mm) | 3-15.88x65 | 3-15.88x65 |
| Distance between spindle and table(mm) | 50-410 | 50-410 |
| Ram travel (mm) | 520 | 520 |
| Travel of spindle quill (mm) | 127 | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.14 | 0.04/0.08/0.14 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps | 80-5440 rpm 16steps |
| Spindle hole taper | R8 / NT30 (optional ) | R8 / NT30 (optional ) |
| Main Motor | 3HP | 3HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º | left and right±90º forward and backward±45º |
| Guiding tracks(X.Y.Z) | X&Z dovetail, Y axis square | X dovetail, Y&Z square |
| Dimension(L*W*H)(mm) | 1750x1650x2150 | 1750x1650x2150 |
| Milling head | Round step milling head | Round step milling head |
| Weight (kg) | 1250 | 1300 |
Machine Images & Production Processes
>>
