Industrial Granite Sawing Machine with Factory Price

Product Description

Product Parameters

Model	ZLBS-500CNC/5+1A
Workbench	L3500*W2000mm, Material: PVC+Rubber
Max. cutting	L3500*W2000*H120mm
Blade diameter	350~500mm
Main motor power	22 kw 5-axis Specialized Main Motor (Permanet magnet motor with frequency)
Spindle power(For Milling)	5.5kw
Spindle Max. Speed	24000 rpm
Control Center	Touch-Screen Inndustrial computer + CNC
Controller brand	"Cut Cam"CNC System or "ESA system from Italy"
Driving motor	Servo motor
X.Y.Z Axis Transmission:	Taiwan Linear Guide Rail
C-axis	Rotate 0-360 °
A-axis	tilt 0-90 °
Total power	35kw
Vacuum Lifter lifting weight	200 kgs
Clamping Cylinders	5 groups
Worktable	Be faced with Rubber, can tilt 85°
Dimensions	L5750*W4150*H3500mm
Water consumption	2m³/h
Total weight	5.4t
Main part delivered size	5750x2200x2600mm
Machine-delivered method	Main part delivered as a whole (High-Cube container)

For processing Marble, Granite, Porcelain, and Quartz Stone Countertops, we provide 5 Axis CNC Granite Sawing Machine.

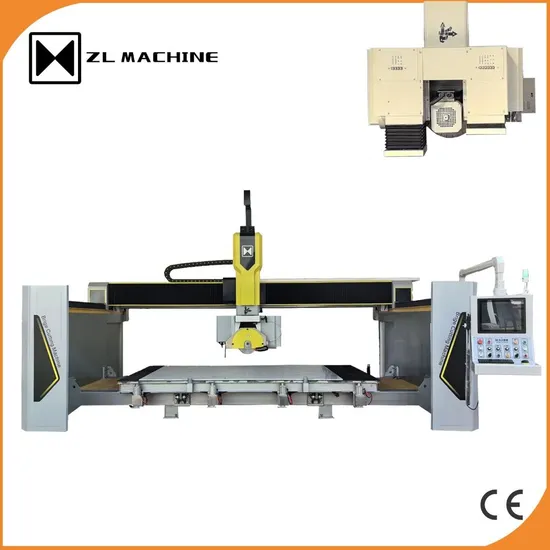

5 axis CNC Granite Sawing Machine, Type:ZLBS-500CNC/5+1A, accept Max.500mm Saw Blade. Max. Cutting thickness to be 12cm. A Camera is equiped to position Plates automatically and help calculate the size of workpieces. The Machine Head can rotate 0~360°, Tilt 0~90°, enable Processing at various Angles and directions. It adopts CNC system, together with an industrial Computer, makes stone Production totally automatic. Operators can Cutting stone easily. As it's such an user-friendly machine, it gains growing popularity in building industry, home decoration industry, etc.

Option: (System) 1. "Cut Cam"CNC System 2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add Front sliding doors

Product Features
1. Water-Cooled Electric spindle
* Rotating speed: 0-24000 rpm, power 5.5kwq
The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, milling, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. Photo Layout Function
This Machine equipt a high-precision camera Camera layout function.
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
Working Head can rotate 0°~360°, and tilt 0°~90°
4. Benchtable Turnover 85°
This worktable can be flipped over 85°, facilitating loading and unloading process, reducing human labor.
5. Adopt Clamping Cylinders
This Machine has a group of clamping Cylinders on sides of worktable.
They will automatically clamp workpieces during milling work. It ensures precision and high-efficiency.
6. Adopt Vacuum Lifters
If the blade-cutting path conflicts, the Vacuum Lifters will help to move slabs automatically. The suction sups can lift and move maximum 200kgs' slab. It makes the production fully automatic.
7. Adopt Big Chamfering Range
This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.

8. Adopt Touch-Screen
This Machine has an industrial computer and a touch-screen.

9. Adopt CNC System CutCam or Optionl Esa
The CNC system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. Adopt Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. Auto thickness measuring probe
Can Measure the thickness of workpieces automatically.
Functions
* Straight Cut: various polygons, vertical Cut, Miter Cut, Bevel Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals...
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin
*Vein matching: match vein and seam of your slabs with ease.

Packaging & Shipping
This model can be loaded into a 40' HIGH-CUBE Container.
Company Profile
Certifications
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.
FAQ Q: What is the MOQ of your machine?
A: Our MOQ is 1 set.
Q: Can you make Sample production according to my Design Drawings?
A: Of Course. We can do sample production according to your design drawings and shoot videos for you.

Q: What language does your machine have?
A: Chinese, English, Russian, Spanish, Arabic language, etc. according to your requirement.

---
