Large-Scale Automatic PE High-Speed Plastic Film Blowing Machine

Product Description

Product Description

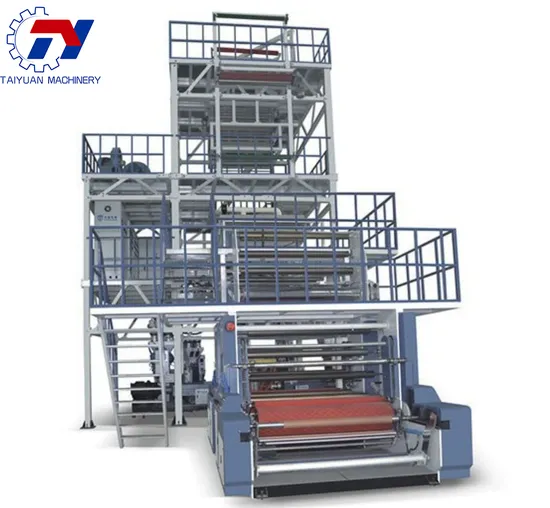

TY-1200HDPE Large-scale automatic PE high-speed plastic film blowing machine
1.Feature:
1.1, The machine take the HDPE or LDPE,LLDPE as raw material, through heating, extrusion, blowing, stretch, winder and final be roll thin film.
1.2, The finished plastic thin film is widely used for supermarket bag, garbage bag, various plastic package bag, farmland film.cote film and compound thin film.
1.3,The machine adopts back-to-back double-winding for the production and processing of PE heat shrinkable film.
3.Main Technical Specification

Model	TY-1200HDPE
Screw Diameter	65mm
Screw Ratio	30:1
Die	Φ220
Screw Speed	10-100r/min
Max. Output	40-85kg/h
Max. Folding Width of Film	500-1200mm
Thickness of Film	0.01-0.08mm
Main Motor	22Kw
Total Power	45Kw
Reducer	173#
Weight of Machine	2800kg
Overall Dimensions	5.2×2.6×4.8m
Voltage	380V 50-60HZ

Detail specification
Screw:
Screw Diameter (mm): Ф65mm
Screw L/D ratio: 30:1
38CrMoAlA Polished with Nitrided Treatment
hardness of heat treatment: screw HV≥740, barrel HV≥900
depth of hardening:0.6-0.7mm
brittleness grade: ≤2 grade
Screw Speed 10-100r/min
Motor:
Driving motor: 22kw M-4 variable frequency motor
Heating Zone: 7(zone) Screw:4(zone) Three-way connection device:1(zone) Die:1 (zone) Rotating head:1(zone).
Cooling way: Air cooling
ScrewHeating capacity: 4(zone)
heating power:9.6kw
Feeding method: Manual feeding.
Screen changer
Changing method: Manual filter net
Temperature control table: intelligent dual digital display
Inverter:22kw VVVF controller
Reducer: 173# Hard surface gear reducer
Reduction ratio: 10:1
Extrusion Die
The working mode of the die: rotating the die, the motor drives the die to rotate 360 degrees, increasing the flatness of the film winding
Die Diameter: LDPEФ220mm or as per customer's choice.
Processing way: Adopt numerical control processing center
Die gap: 1.8mm
Die Heating Control (zone): 1
Heating Capacity: 3.5kw
Three-way connection device:1(zone) 2.2kw
Type of air-ring: dual lip high effective cooling to air ring
Air blower: 3 kw x1pcs
Cooling air ring: 780mm High-pressure double air outlet ring
Duct diameter:φ80mm
Haul -off Unit
Roller width (mm): 1300
Effective width (mm): 1200
Take-up motor: 1.5kw Turbine direct-coupled variable frequency motor
Reducer: 10:1
Take-up speed (M/minute): 0-80m/min
Speed control mode: frequency converter speed regulation
Inverter power: 1.5kw vector inverter
Type of roller: rubber roller and metal roller
Pressure roller adjustment mode: pneumatic control
Corona treater:1200mm
Total height of rack:5000mm
Winding Unit
Type of winder: Double broken double
Working method: surface friction type
Roller width (mm):1300
Effective width (mm): 1200
Roll Diameter: 600mm
Automatic length counting
Winding motor: AC Torque Motor x3(10N.m)
Tension controller: by torque motor 20Ax3
Winding speed (M/min): 0-60m(M/min)
Reel: 4pcs Mechanical shaft (unloading screw)
3. Main part configuration

ITEM	BRAND	Origin
Inverter	YU QIANG	CHINA GUANG DONG
TEMPERATURE CONTROL	CHINT	CHINA
Low voltage electrical switch	KE QIANG	CHINA
Stainless steel heating ring	Chun hua	RUI AN
MAIN MOTOR	LI PU	CHIAN SHANG HAI
AIR BLOWER	Yin niu	Tai zhou
Screw and barrel	Hai xin	ZHEJIANG ZHOUSHAN
Gear box	FU he	CHINA chang zhou
Die	Zheng yu	RUI AN
Rotating head	Yunbang	RUI AN
Double winding device	Yunbang	RUI AN
Corona treater
