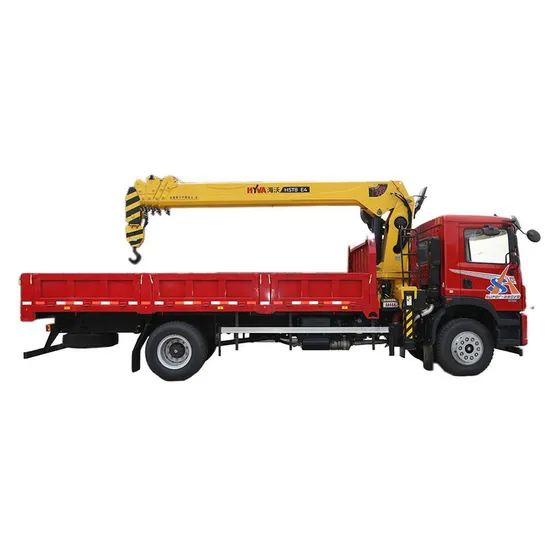

Shanghai Super-Above 12000kg Truck Mounted Crane

Product Description

Super-above Truck mounted crane, Crane Truck,mobile crane Truck.
This kind of special truck is mainly used for transporting cargo.In order to Convenient transporting, it install the crane to lifting the cargo. crane style model foldable,telescope.
Currently our company produce the Crane truck from 3 tons~40 tons model.


Specification

General Specification
Name	16.1m lifting height truck mounted crane 10/8 tons Isu-zu Tractor Mounted Crane
Applicable crane	8-10 T
Gross weight	18000kg
Curb weight	10550kg
Dimension	9000X2510X3850mm
Cargo body dimension	5700×2290×600mm
Wheelbase	4700mm
Drive type	4X2
Max speed	95km/h
Tire specification	11.00R20 16PR
Tire quantity	6
Brake system	Oil brake
Engine Specification
Engine manufacture	Howo/Schaman/Dongfeng/Sinotruck/Foton/JAC
Emission standard	Euro 2/3/4/5
Horse power	150-350hp
Displacement	5190ml
Crane Specification
Items	8-ton 4 section		10-ton 4 section
Max lifting capacity(kg)	8000	8000	10000	10000
Max lifting capacity at full extension(kg)	800	1100	1300	1500
Working radius(m)	14	11.5	14	12
Max lifting height(m)	16.1	13.5	16.1	14
Crane weight(kg)	3820	3315	3800	3765
Outrigger span(m)	2280--5600	2280-5580	2280--5600	2280--5580
Rotation angle	360 full rotation	360 full rotation	360 full rotation	360 full rotation

LHD or RHD telescopic boom crane truck high cost performance truck mounted crane 1. Truck crane is specially designed and produced on the basis of common cargo trucks or dump trucks, but need strong chassis frame with high strength to support the crane when lifting heavy cargos.
2. Our product type is available in 1 tons~200 tons capacity crane, correspondingly the truck chassis wheel drive from4x2/4x4/6x2/6x4/6x6/8x4/x10x4.
3. Special crane design:common the end of crane is a hook linked with stee rope, but we can mount a gripping device, holder or other special designed mechanism to achieve the functions of gripping action to hold cargos, not always hooking cargo.
4. Hydraulic system: all the actions of crane and outriggers are driving by hydraulic system, high quality sealed oil cylinder and hydraulic pipe,etc.
5. Control system: for lifting capacity under 6 tons, crane is controlled by the operation handles on both sides; over 8 tons, on the top of crane, there is a seat and operation handles on the top of crane.
6. Cargo box: box length from 3meters to 10 meters and can produce according to your special requirements, you can check from the following photos below.
Testing in factory before loading&delivery
