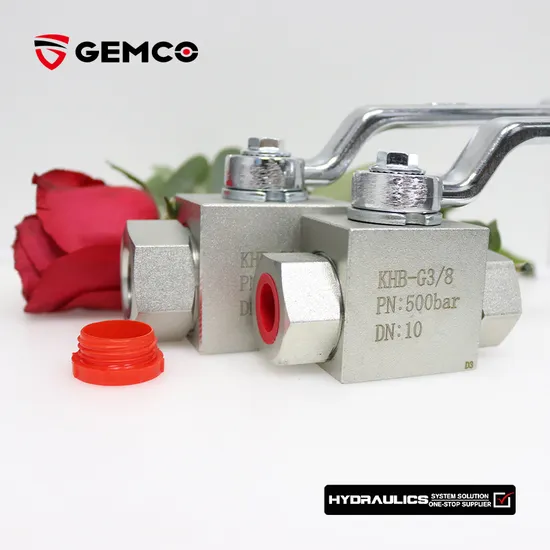

Stainless Steel Ball Valve / NPT3/8 Steel High Pressure Ball Valve / BSP1/4 Brass Hydraulic Valve / PN500/300Bar Female Ball Valve / DIN-ISO1219 Valve

Product Description

Product Description BKH,MKH Series High Pressure Ball Valve
Joint Standard: SAE J518C standard Pressure Grade: 210.420 bar Nominal Diameter:13/20/255/32 40/50mm
Valve Body and joint material: Carbon steel
Ball and control mandrel material: Carbon steel
Ball seal: POM
Joint seal and Control mandrel seal: NBR
Handle Type: Casting zinc crooked handle
Surface treatment: Zinc plated
Detailed Photos According to the different requirements of different customers to produce customized hydraulic ball valves. Sophisticated testing equipment:
Sophisticated testing equipment can ensure product quality.
Neat production line:
Gemco's multiple production lines can ensure the rapid production of products and ensure that the delivery time is not delayed!
Unified management warehouse:
Unified warehouse management allows us to better manage customers' products and ensure fast delivery!
Responsible management team:
Related Q&A:
Q1. What kind of products do you produce?
A. Gemco was focused on the production of high pressure ball valvesWith the detection and research of the needs of OEM customersfluid fields, Then Gemco started to provide hydraulic system solutions.A variety of products such as quick coupling, hydraulic fitting, assembly etc.
Q2. Will you help print the logo?
A. Yes, we will print the logo according to the different requirements of customers.
Q3. Can you make products under my own brand?
A. Yes, we have been providing OEM service for 20 years.
Q4. How long will it take for my order to arrive?
A. Usually it takes 5 to 30 days, it usually depends on your order quantity and our stock. Product Parameters Overall Dimension:

Model	PN(bar)	DN	1LW	L	Ll	B	H	hil	h2	hg	SW1	SW2	T	d1	d2	d3	US Stajdard O-ring
BKH-SAE-FS-210-13	210	13	13	151	47	35	49	18	38	10	9	30	6.8	24	25.5	30.2	18.6*3.5
BKH-SAE-FS-420-13	420	13	13	151	47	35	49	18	38	10	9	30	7.9	24	25.5	31.8	18.6*3.5
BKH-SAE-FS-210-20	210	20	19	162	60	48	70	25	55	11	12	41	6.8	31.7	31.9	38.1	25*3.5
BKH-SAE-FS-420-20	420	20	19	174	60	48	70	25	55	11	12	41	8.9	32	31.9	41.3	25*3.5
BKH-SAE-FS-210-25	210	25	25	178	65	57	79	28.5	64	11	12	46	8.1	38	39.8	4.4	32.9*3.5
BKH-SAE-FS-420-25	420	25	22	198	65	57	79	28.5	64	11	12	46	9.6	38	39.8	47.6	32.9*3.5
BKH-SAE-FS-210-32	210	32	30	191	75	66	92	33	75	12	14	55	8.1	43	44.6	50.8	37.7*3.5
BKH-SAE-FS-420-32	420	32	27	223	75	66	92	33	75	12	14	55	10.4	4	44.6	54	37.7*3.5
BKH-SAE-FS-210-40	210	40	36	231	91	80	105	40	88	12	14	70	8.1	50	54.1	60.3	47.2*3.5
BKH-SAE-FS-420-40	420	40	32	281	91	80	105	40	88	12	14	70	12.7	51	54.1	63.5	47.2*3.5
BKH-SAE-FS-210-50	210	50	48	232	100	96	121	48	104	12	14	85	9.6	62	63.6	71.4	56.7*3.5
BKH-SAE-FS-420-50	420	50	45	316	100	96	121	48	104	12	14	85	12.7	67	63.6	79.4	56.7*3.5

More model parameters can be obtained by contacting the supplier at any time!

---
