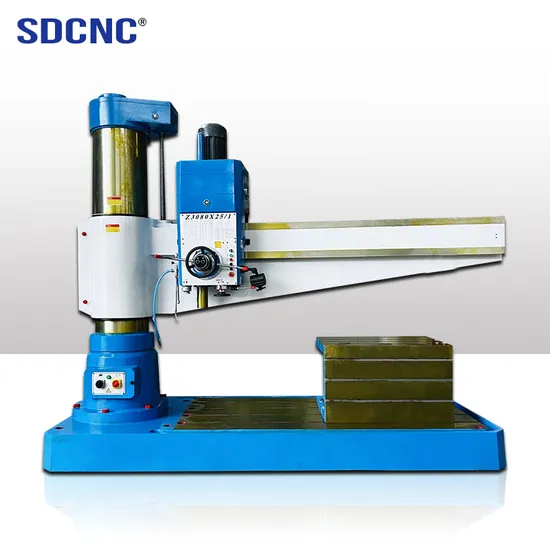

Heavy Duty Radial Drilling Machine Z3080 /80mm Dia Radial Arm Drilling Machine

Product Description

Product description:
hydraulic clamping Hydraulic transmission Hydraulic pre-selection Electrical machinery double insurance SPECIFICATIONS

Specifications	Units	Z3080x20A	Z3080X25A
Max.drilling machine	mm	80	80
Distance from spindle nose to table surface	mm	35-1585	350-1585
Distance between spindle axis and column surface	mm	500-2070	500-2570
Spindle travel	mm	400	400
Spindle taper	MT	MT6	MT6
Spindle speeds range	(r.p.m)	16-1250	16-1250
Spindle speed step		16	16
Spindle feeding range	(r.p.m)	0.04-3.20	0.04-3.20
Spindle feeding step		16	16
Rocker rotary angle		+/-90°	+/-90°
Main motor power	kw	7.5	7.5
Movement motor power	kw	1.5	1.5
N/W	kg	7000	9500
Overall dimensions(L*W*H)	mm	3000*1250*3300	350081450*3300

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tools.

---
