Main Features(1)MOSFET inverter and PWM technology, energy-efficient, power frequency and no noise.
(2)MMA/TIG/CUT function in one compact machine. Multi-functional, economical and practical.
(3)Ingenious circuit design, simple structure, safe and reliable.
(4)Small and light, easy to carry around and to install.
(5)Automatic high temperature shutdown.
(6)Mainly used for cutting carbon steel, stainless steel, alloy steel, copper and aluminum,etc.
(7)Supplied complete with stick electrode holder, TIG torch, CUT torch,air regulator, pressure gauge, earth clamp, welding cable, face mask and welding brush.
ITEM
|

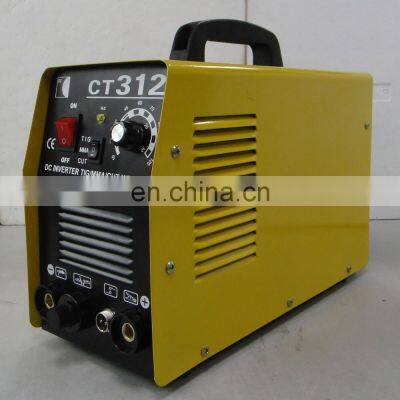

| CT-312
| CT-416
| CT-520
|
Input power voltage
| V
| AC230V
| AC230V
| AC230V
|
Input power frequency
| Hz
| 50/60
| 50/60
| 50/60
|
Rated input capacity
| KVA
| 3.5
| 4.5
| 5.5
|
Output current range (MMA)
| A
| 10-110
| 10-140
| 10-160
|
Output current range (TIG)
| A
| 10-120
| 10-160
| 10-190
|
Output current range (CUT)
| A
| 10-30
| 10-40
| 10-50
|
No-load voltage
| V
| 230
| 240
| 250
|
Rated duty cycle
| %
| 60
| 60
| 60
|
Arc start
|
| HF
| HF
| HF
|
Power factor
|
| 0.93
| 0.93
| 0.93
|
Air pressure
| mpa
| 02-04
| 02-04
| 02-04
|
Protection grade
|
| IP21S
| IP21S
| IP21S
|
Dimensions
| mm
| 410*155*300
| 460*210*360
| 510*210*360
|
Weight
| kg
| 8.6
| 12.7
| 17.8
|
Welding Spare Parts
Related Products
MIG-250
TIG-200S
CUT-50
Certifications
Packing & Delivery
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Wenling, Taizhou city, Zhejiang Province, China.30 mins from Luqiao Airport by car, 2.5 hours from Ningbo Airport by car, 4 hours from Shanghai Airport by car.
3.Q:What is the material of your products?
A: Taizhou Retop people are always paying great attentions to quality controlling from the beginning to the end.
4.Q:How about quality control in your factory?
A: Taizhou Retop people are always paying great attentions to quality controlling from the beginning to the end.
5.Q:How about guarantee?
A: It's within 1 year after goods is discharged in the destination.
