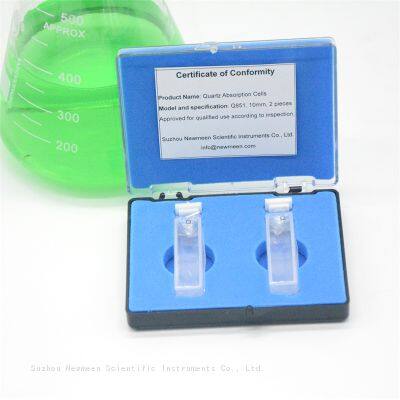

Quartz Cuvette is suitable for various brands of spectrophotometers

Product Description

Product Description
We have Quartz Cuvettes suitable for various brands of spectrophotometers, supporting customization.
This standard is applicable to 721, 751 Quartz Cuvette, which are used for quantitative analysis of test solutions on various spectrophotometers.
Ⅰ、Size
1、The size of 721 and the range of light passing area should meet the requirements in the following table:

Optical path size A	Inner diameter dimension B	Outer diameter length dimension C	Outer diameter width dimension D	Outer diameter high dimension H	Size of optical zone e*h
5±0.1	12±0.2	9±0.2	15±0.2	43±0.5	11.5*25.5
10±0.15	12±0.2	14±0.2	15±0.2	43±0.5	11.5*25.5
20±0.15	12±0.2	24±0.2	15±0.2	43±0.5	11.5*25.5
30±0.15	12±0.2	34±0.2	15±0.2	43±0.5	11.5*25.5
50±0.15	12±0.2	54±0.2	15±0.2	43±0.5	11.5*25.5

2、The size of 751 and the range of light passing area should meet the requirements in the following table:

Optical path size A	Inner diameter dimension B	Outer diameter length dimension C	Outer diameter width dimension D	Outer diameter high dimension H	Size of optical zone e*h
5±0。07	10±0.2	7.4±0.25	12.4±0.2	45±0.3	8*35
10±0。07	10±0.2	12.4±0.25	12.4±0.2	45±0.3	8*35
20±0。1	10±0.2	22.4±0.3	12.4±0.2	45±0.3	8*35
30±0。1	10±0.2	32.4±0.3	12.4±0.2	45±0.3	8*35
40±0。1	10±0.2	42.4±0.3	12.4±0.2	45±0.3	8*35
50±0。1	10±0.2	52.4±0.3	12.4±0.2	45±0.3	8*35

Standard cell with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×3.5	1	10	0.35
45×12.5×4.5	2	10	0.70
45×12.5×7.5	5	10	1.7
45×12.5×12.5	10	10	3.5
45×12.5×22.5	20	10	7.0
45×12.5×32.5	30	10	10.5
45×12.5×42.5	40	10	14
45×12.5×52.5	50	10	17.5
45×12.5×102.5	100	10	35.0

Standard cell with telflon stopper

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	10	1.7
45×12.5×12.5	10	10	3.5
45×12.5×22.5	20	10	7.0
45×12.5×32.5	30	10	10.5
45×12.5×42.5	40	10	14.0
45×12.5×52.5	50	10	17.5
45×12.5×102.5	100	10	35.0

Semi-Micro cell with blank walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	4	0.7
45×12.5×12.5	10	4	1.4
45×12.5×22.5	20	4	2.8
45×12.5×32.5	30	4	4.2
45×12.5×42.5	40	4	5.6
45×12.5×52.5	50	4	7
45×12.5×102.5	100	4	14

Semi-Micro cell with black walls and telflon stopper

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	4	0.7
45×12.5×12.5	10	4	1.4
45×12.5×22.5	20	4	2.8
45×12.5×32.5	30	4	4.2
45×12.5×42.5	40	4	5.6
45×12.5×52.5	50	4	7
45×12.5×102.5	100	4	14

Micro cell with black walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	2	0.35
45×12.5×12.5	10	2	0.7
45×12.5×22.5	20	2	1.4
45×12.5×32.5	30	2	2.1
45×12.5×42.5	40	2	2.8
45×12.5×52.5	50	2	3.5
45×12.5×102.5	100	2	7

Micro cell with black walls and telflon stopper

Outside Dim H×W×D mm	Path Length mm	nside Width mm	Volume ml
45×12.5×7.5	5	2	0.35
45×12.5×12.5	10	2	0.7
45×12.5×22.5	20	2	1.4
45×12.5×32.5	30	2	2.1
45×12.5×42.5	40	2	2.8
45×12.5×52.5	50	2	3.5
45×12.5×102.5	100	2	7

Self masking continuous flowthrough cell

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	ф3	0.035
45×12.5×12.5	10	ф3	0.07
45×12.5×22.5	20	ф3	0.14
45×12.5×32.5	30	ф3	0.21
45×12.5×7.5	5	ф2	0.015
45×12.5×12.5	10	ф2	0.03
45×12.5×22.5	20	ф2	0.06
45×12.5×12.5	10	ф1.5	0.018

Self masking continuous flowthrough cell

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	4×12	0.24
45×12.5×12.5	10	4×12	0.48
45×12.5×22.5	20	4×12	1.0
45×12.5×32.5	30	4×12	1.5
45×12.5×7.5	5	2×12	0.12
45×12.5×12.5	10	2×12	0.24

Cylindrical cell

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
ф22×12.5	10	ф19	2.8
ф22×22.5	20	ф19	5.7
ф22×52.5	50	ф19	14.0
ф22×102.5	100	ф19	28.0

Cylindrical cell one stopper

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
ф22×12.5	10	ф19	2.8
ф22×22.5	20	ф19	5.7
ф22×52.5	50	ф19	14.0
ф22×102.5	100	ф19	28.0

Standard cell with lid and with round bottom

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×3.5	1	10	0.35
45×12.5×4.5	2	10	0.7
45×12.5×7.5	5	10	1.7
45×12.5×12.5	10	10	3.5
45×12.5×22.5	20	10	7.0
45×12.5×32.5	30	10	10.5
45×12.5×42.5	40	10	14.0
45×12.5×52.5	50	10	17.5
45×12.5×102.5	100	10	35.0

Standard cell with telfron and with round bottom

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×3.5	1	10	0.35
45×12.5×4.5	2	10	0.7

Standard cell with telfron stopper and with round bottom

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	10	1.7
45×12.5×12.5	10	10	3.5
45×12.5×22.5	20	10	7.0
45×12.5×32.5	30	10	10.5
45×12.5×42.5	40	10	14.0
45×12.5×52.5	50	10	17.5
45×12.5×102.5	100	10	35.0

Micro cell with black walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	1	0.17
45×12.5×12.5	10	1	0.35
45×12.5×22.5	20	1	0.7
45×12.5×32.5	30	1	1
45×12.5×42.5	40	1	1.4
45×12.5×52.5	50	1	1.75
45×12.5×102.5	100	1	3.5

Micro cell with black walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	3	0.5
45×12.5×12.5	10	3	1.0
45×12.5×22.5	20	3	2.1
45×12.5×32.5	30	3	3.15
45×12.5×42.5	40	3	4.2
45×12.5×52.5	50	3	5.25
45×12.5×102.5	100	3	10.5

Semi-Micro cell with black walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	5	0.85
45×12.5×12.5	10	5	1.75
45×12.5×22.5	20	5	3.5
45×12.5×32.5	30	5	5.25
45×12.5×42.5	40	5	7
45×12.5×52.5	50	5	8.75
45×12.5×102.5	100	5	17.5

Self masking continuous flowthrough cell

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×12.5	10	ф1	0.01
45×12.5×22.5	20	ф1	0.016
45×12.5×32.5	30	ф1	0.025
45×12.5×12.5	10	ф1.5	0.018
45×12.5×22.5	20	ф1.5	0.036
45×12.5×32.5	30	ф1.5	0.055
45×12.5×12.5	10	ф2	0.03
45×12.5×22.5	20	ф2	0.06
45×12.5×32.5	30	ф2	0.09

Standard fluorometer cell with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	10	1.7
45×12.5×12.5	10	10	3.5
45×12.5×22.5	20	10	7.0
45×12.5×32.5	30	10	10.5
45×12.5×42.5	40	10	14.0
45×12.5×52.5	50	10	17.5
45×12.5×102.5	100	10	35

Standard fluormeter cell with telfron stopper

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	10	1.7
45×12.5×12.5	10	10	3.5
45×12.5×22.5	20	10	7.0
45×12.5×32.5	30	10	10.5
45×12.5×42.5	40	10	14.0
45×12.5×52.5	50	10	17.5
45×12.5×102.5	100	10	35

Micro cell with frosted walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	1	0.17
45×12.5×12.5	10	1	0.35
45×12.5×22.5	20	1	0.70
45×12.5×32.5	30	1	1.0
45×12.5×42.5	40	1	1.4
45×12.5×52.5	50	1	1.75
45×12.5×102.5	100	1	3.5

Micro cell with frosted walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	2	0.35
45×12.5×12.5	10	2	0.7
45×12.5×22.5	20	2	1.4
45×12.5×32.5	30	2	2.1
45×12.5×42.5	40	2	2.8
45×12.5×52.5	50	2	3.5
45×12.5×102.5	100	2	7.0

Micro cell with frosted walls and with lid

Outside Dim H×W×D mm	Path Length mm	Inside Width mm	Volume ml
45×12.5×7.5	5	3	0.5
45×12.5×12.5	10	3	1
45×12.5×22.5	20	3	2.1
45×12.5×32.5	30	3	3.15
45×12.5×42.5	40	3	4.2
45×12.5×52.5	50	3	5.25
45×12.5×102.5	100	3	10.5

Semi-Micro cell with frosted walls and with lid

Outside Dim H×W×D mm	ength mm	Inside Width mm	Volume ml
45×12.5×7.5	5	4	0.7
45×12.5×12.5	10	4	1.4
45×12.5×22.5	20	4	2.8
45×12.5×32.5	30	4	4.2
45×12.5×42.5	40	4	5.6
45×12.5×52.5	50	4	7.0
45×12.5×102.5	100	4	14.0

---
