Venttk OEM 10/12/18/24 Heat Pipes CPU Radiator

US$50.00 50 Pieces (MOQ)

Basic Info.

Model NO.
2R-10H-4800
Heatsink Material
Copper & Aluminum
Intelligent Temperature Control
Not Support Intelligent Temperature Control
Noise
Ultra Mute
CPU Type
All
Fan Bearing
Sleeve Bearing
Multi-Angle
Without Multi-Angle
Layers
Single/Two/Three
Dimension
120-120mm/240-120mm
Fin Material
Copper/Aluminum/Stainless Steel
Fin Type
Flat/Sine Wave/Window Fin
Tube Material
Copper/Aluminum/Stainless Steel
Plate Material
Copper/Aluminum/Stainless Steel
Header Material
Copper/Aluminum/Stainless Steel
OEM Customized
Supported
Size
Customized
Capacity
Customized
Core Dimension
89.5*99*16mm
Mounting Dimension
82.5*82.5mm
Inlet & Outlet Water Pipe
G 1/4 Thread
Performance
Good
Original Place
Shanghai
Transport Package
Carton Box
Trademark
Shenglin
Origin
Shanghai
HS Code
8419500090
Production Capacity
300 Sets/Month

Product Description

Product Description

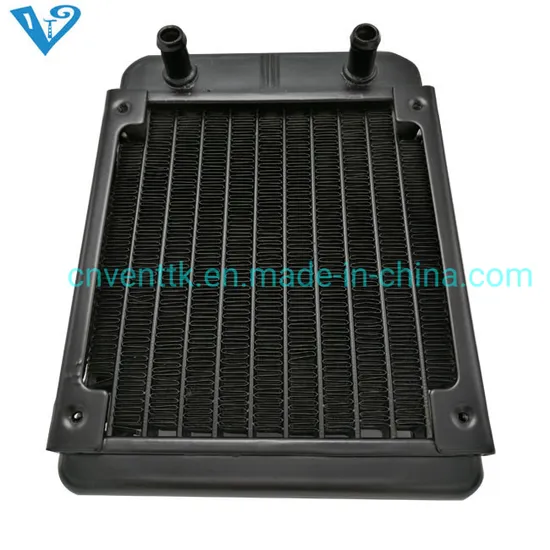

CPU RADIATOR
PC, 3D printer (circuit control), laser printer, medical equipment, hairdressing equipment, CNC machine tool computer version, electrical cabinet (water cooling), automation equipment (such as CNC machine), welding machine, wine cabinet, small system Ice machine and small air conditioner. Product Parameters
Water Cooled CPU Radiator
Model Data Model Data
CPU-004 Core Dimension: 80*80*16mm CPU-120A-12 Core Dimension: 117*116*16mm
Mounting Dimension: 71*71mm Mounting Dimension: 105*105mm
Inlet & Outlet Water Pipe: φ8.0mm Inlet & Outlet Water Pipe: φ8.0mm / φ9.5mm
CPU-001 Core Dimension: 89.5*99*16mm CPU-240A-12 Core Dimension: 234*116*16mm
Mounting Dimension: 82.5*82.5mm Mounting Dimension: 105*105mm
Inlet & Outlet Water Pipe: G 1/4 Thread Inlet & Outlet Water Pipe: φ8.0mm
CPU-120B-10 Core Dimension: 111*119*16mm CPU-240A-18 Core Dimension: 234*118*16mm
Mounting Dimension: 105*105mm Mounting Dimension: 105*105mm
Inlet & Outlet Water Pipe: G 1/4 Thread Inlet & Outlet Water Pipe: φ10.0mm
CPU-120A-18 Core Dimension:116*119*16mm CPU-003A-10 Core Dimension: 236*118*16mm
Mounting Dimension: 105*105mm Mounting Dimension: 105*105mm
Inlet & Outlet Water Pipe: φ10.0mm Inlet & Outlet Water Pipe: G 1 / 4 Thread
CPU-120B-18 Core Dimension: 116*119*16mm CPU-240B-18 Core Dimension: 234*118*16mm
Mounting Dimension: 105*105mm Mounting Dimension: 105*105mm
Inlet & Outlet Water Pipe: G 1/4 Thread Inlet & Outlet Water Pipe: G 1 / 4 Thread
CPU-002B-10 Core Dimension: 111*119*16mm CPU-360A-18 Core Dimension: 354*120*16mm
Mounting Dimension: 105*105mm Mounting Dimension: 105*105mm
Inlet & Outlet Water Pipe: G 1/4 Thread Inlet & Outlet Water Pipe: φ10.0mm

Detailed Photos
