2be Water Ring Vacuum Pump for Chemical, Chemical Fertilizer, Paper and Pharmaceutical Industry From China

Product Description

Product Description
2BE1 series water ring vacuum pump is a high mussel energy product developed by our company in combination with imported magnetic technology. This series of vacuum pump is a single machine single action structure, which has the advantages of simple structure, convenient maintenance, reliable operation and high aiming energy. It is usually used to suck air or other gases insoluble in water, free of solid particles and non corrosive, so as to form a certain vacuum in a closed container. Equipped with clear motor, it can suck flammable and explosive gas. After the pump tree material is corrosion-resistant material or wrist rot MTS, it can suck corrosive gas to a certain extent.
2BE1 series water ring vacuum pumps are widely used in petrochemical, light industry, chemical industry, pharmaceutical, papermaking, metallurgy, building materials, electrical appliances, food, coal washing, beneficiation, chemical fertilizer and other industries.
Our Advantages
2BE1 series water ring vacuum pump is a high mussel energy product developed by our company in combination with imported magnetic technology. This series of vacuum pump is a single machine single action structure, which has the advantages of simple structure, convenient maintenance, reliable operation and high aiming energy. It is usually used to suck air or other gases insoluble in water, free of solid particles and non corrosive, so as to form a certain vacuum in a closed container. Equipped with clear motor, it can suck flammable and explosive gas. After the pump tree material is corrosion-resistant material or wrist rot MTS, it can suck corrosive gas to a certain extent.
2BE1 series water ring vacuum pumps are widely used in petrochemical, light industry, chemical industry, pharmaceutical, papermaking, metallurgy, building materials, electrical appliances, food, coal washing, beneficiation, chemical fertilizer and other industries.
Product Parameters

Type	revolution ( transmission way) r/min	Maximum shaft power kW	motor power kW	motor model	Ultimate vacuumcPa	Maximum air valume m3/h	Pump weight kg
	1100 (belt)	7.2	11	Y160M-4		300	428
	1300 (belt)	9.2	11	Y160M-4		360	444
2BE1 151	1450 (direct connection)	10.8	15	Y160L-4	3300	405	469
	1625 (belt)	13.2	15	Y160L-4		445	469
	1750 (belt)	14.8	18.5	Y180M-4		470	503
	1100 (belt)	8.3	11	Y160M-4		340	437
	1300 (belt)	10.5	15	Y160L-4		415	481
2BE1 152	1450 (direct connection)	12.5	15	Y160L-4	3300	465	481
	1625 (belt)	15	18.5	Y180M-4		510	515
	1750 (belt)	17.2	22	Y180L-4		535	533
	1100 (belt)	10.6	15	Y160L-4		445	480
	1300 (belt)	13.6	18.5	Y180M-4		540	533
2BE1 153	1450 (direct connection)	16.3	18.5	Y180M-4	3300	600	533
	1625 (belt)	19.6	22	Y180L-4		660	551
	1750 (belt)	22.3	30	Y200L-4		700	601
	970 (direct connection)	17	22	Y200L2-4		760	875
	790 (belt)	14	18.5	Y180M-4		590	850
2BE1 202	880 (belt)	16	18.5	Y180M-4	3300	670	850
	1100 (belt)	22	30	Y200L-4		850	940
	1170 (belt)	25	30	Y200L-4		890	945
	1300 (belt)	30	37	Y225S-4		950	995
	970 (direct connection)	27	37	Y250M-6		1120	1065
	790 (belt)	20	30	Y200L-4		880	995
2BE1 203	880 (belt)	23	30	Y200L-4	3300	1000	995
	1100 (belt)	33	45	Y225M-4		1270	1080
	1170 (belt)	37	45	Y225M-4		1320	1085
	1300 (belt)	45	55	Y250M-4		1400	1170
	740 (direct connection)	38	45	Y280M-8		1700	1693
	558 (belt)	26	30	Y200L-4		1200	1460
2BE1 252	660 (belt)	31.5	37	Y225S-4	3300	1500	1515
	832 (belt)	49	55	Y250M-4		1850	1645
	885 (belt)	54	75	Y280S-4		2000	1805
	938 (belt)	60	75	Y280S-4		2100	1805
	740 (direct connection)	54	75	Y315M-8		2450	2215
	560 (belt)	37	45	Y225M-4		1750	1695
	660 (belt)	45	55	Y250M-4		2140	1785
2BE1 253	740 (belt)	54	75	Y280S-4	3300	2450	1945
	792 (belt)	60	75	Y280S-4		2560	1945
	833 (belt)	68	90	Y280M-4		2700	2055
	885 (belt)	77	90	Y280M-4		2870	2060
	938 (belt)	86	110	Y315S-4		3020	2295

Detailed Photos

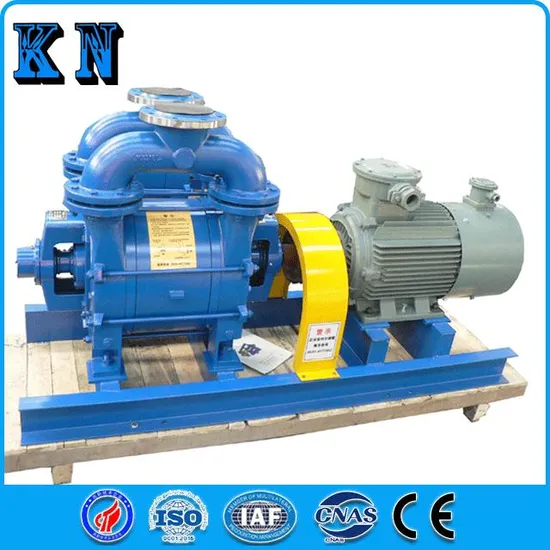

water ring vacuum pump
Vacuum pump is used in the field of chemical and pharmaceutical factory
Direct-connected water ring vacuum pumps
Water ring vacuum pump set General Manager Speech
Deeply cultivate the vacuum technology, and research,develop and manufacture the vacuum equipment to provide the best solution in the vacuum field and make the vacuum application easier.
Company Profile
Shandong Kaien Vacuum Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and operation of vacuum equipment. The company has strong technical force, excellent equipment and considerate after-sales service. The product manufacturing process is managed in strict accordance with IS09001 quality system. It mainly produces and sells screw vacuum pump, roots pump, claw vacuum pump, runoff vacuum pump, scroll pump, water ring vacuum pump, vacuum unit and other vacuum systems.
New plant planning
The company's products have been for a number of food, medicine, refrigeration, drying plants and a number of transformer related equipment manufacturers for vacuum equipment. The products are widely used in vacuum drying and dehydration, kerosene vapor phase drying, vacuum impregnation, vacuum metallurgy, vacuum coating, vacuum evaporation, vacuum concentration, oil and gas recovery, etc.
High precision machining equipment
The company cooperates with many scientific research institutions and universities, such as Shandong University, China University of petroleum, Shandong Institute of mechanical design, etc.with colleges and universities to research and develop core technologies, and owns dozens of independent intellectual property patents.Our technology is leading, the product quality is stable, the product has a good reputation in China's domestic market, is sold all over the country, and is exported to Europe, America, Africa, the Middle East and Southeast Asia,We adhering to the basic tenet of quality, reputation and service, the company takes leading-edge technology of vacuum pump as its own responsibility, and wholeheartedly serves customers of vacuum equipment application in various industries with rigorous working attitude and professional working style.
Product quality wins consumer cooperationIn shipment ISO 9001 High tech enterprise certificate

Welcome to send your needs, we will provide you with the best service, provide the greatest help!!!

---
