18/30kv to 26/35kv High Voltage Copper Conductor XLPE/CAS Insulated PVC PE Sheathed Single Core 500mm2 IEC 60840 Electric Power Cable Factory Price

Product Description

Product Description
YJLW 02, YJLW03, EHV Power Cable, 48/66 kV~127/220 kV, Cu/XLPE/Corrugated AL/PVC (GB/T 11017/IEC 60840)
Standards
This product by GB11017 "rated voltage of 110 kV copper, Aluminum core XLPE power cable" and IEC60840 "rated voltage 30 kV to 150kV power cable insulation crowded pack test" standard.
Application scope The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 48/66kV,64/110kV,76/132kV
Using characteristics Rated power-frequency voltage U0/U: 48/66kV,64/110kV,76/132kV. Max. permissible continuous operating temperature of conductor: 90ºC. Max. short-circuit temperature of conductor shall not exceed 250ºC(5s maximum duration). The ambient temperature under installation should not below 0ºC. The bending radius should not less than 25 times of the cable diameter.
Application
For laying indoors, in tunnel, cable French, well or direct in ground, able to bear external mechanical forces and certain pulling force.

Section	Insulation Thickness	Metallic Sheath Thickness	Sheath Thickness	Overall Diameter	Cable Weight	Electrical Resistance
						DC.20ºC
No.xmm2	mm	mm	mm	mm	kg/km	Ω/km
48/66 kV
1x185	14.5	2.0	4.0	68.3	5250	0.0991
1x240	14.5	2.0	4.0	76.7	5740	0.0754
1x300	14.5	2.0	4.0	79.1	6440	0.0601
1x400	14.5	2.0	4.0	82.3	7480	0.0470
1x500	14.5	2.0	4.0	85.9	8750	0.0366
1x630	14.5	2.0	4.0	85.9	10360	0.0283
1x800	14.5	2.0	4.0	94.3	12260	0.0221
1x800	14.5	2.0	4.0	96.4	13790	0.0221
1x1000	14.5	2.0	4.5	102.8	15470	0.0176
1x1200	14.5	2.0	4.5	106.2	17580	0.0151
1x1400	14.5	2.0	5.0	110.4	20110	0.0129
1x1600	14.5	2.0	5.0	114.8	22510	0.0113
1x2000	14.5	2.0	5.0	121.8	27050	0.0009
64/110 kV
1x240	19.0	2.0	4.0	85.0	7750	0.0754
1x300	18.5	2.0	4.0	86.1	8360	0.0601
1x400	17.5	2.0	4.0	86.9	9120	0.0470
1x500	17.0	2.0	4.0	89.1	10260	0.0366
1x630	16.5	2.0	4.5	92.1	11750	0.0283
1x800	16.0	2.0	4.5	95.0	13520	0.0221
1x800	16.0	2.0	4.5	100.0	14320	0.0221
1x1000	16.0	2.3	4.5	105.4	16760	0.0176
1x1200	16.0	2.3	5.0	109.8	18900	0.0151
1x1400	16.0	2.3	5.0	114.0	21530	0.0129
1x1600	16.0	2.3	5.0	117.4	23930	0.0113
1x2000	16.0	2.3	5.0	124.4	27750	0.0009
127/220 kV
1x300	27.0	2.4	5.0	112.5	10930	0.0601
1x400	27.0	2.4	5.0	118.0	11750	0.0470
1x500	27.0	2.4	5.0	121.2	12880	0.0366
1x630	26.0	2.4	5.0	123.0	14320	0.0283
1x800	25.0	2.4	5.0	124.9	15720	0.0221
1x800	16.0	2.0	4.5	100.0	14320	0.0221
1x1000	24.0	2.6	5.0	129.4	20500	0.0176
1x1200	24.0	2.6	5.0	132.6	22810	0.0151
1x1400	24.0	2.6	5.0	136.8	25450	0.0129
1x1600	24.0	2.6	5.0	140.6	28050	0.0113
1x2000	24.0	2.8	5.0	147.5	32210	0.0009

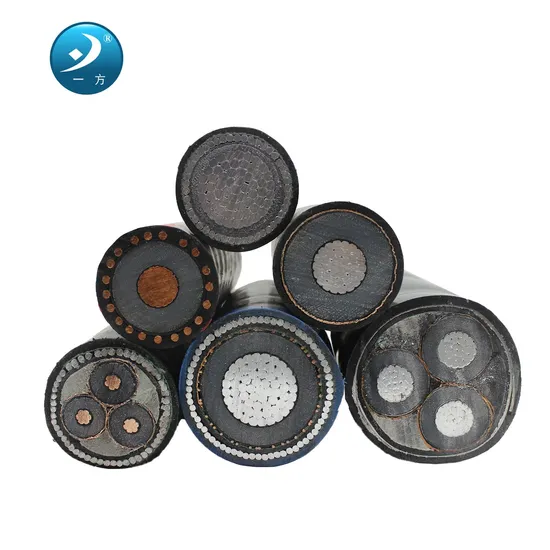

Reference Equipment Picture
Package & Delivery
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
