Grt-194 High Copper Clutch Facing with Full Range Sizes Available

Product Description

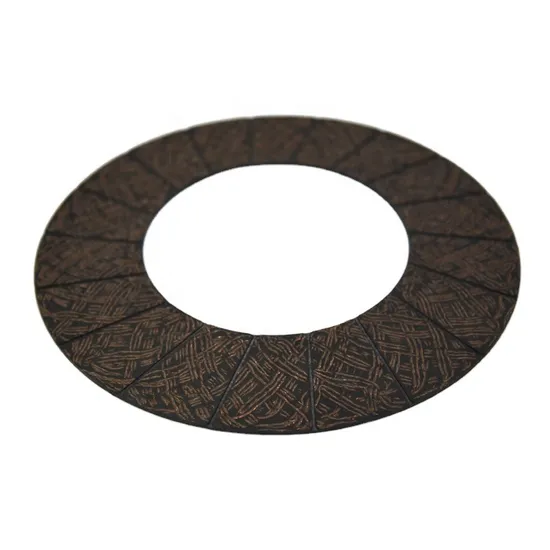

GRT-194 high copper clutch facing with full range sizes available

Material	Disc temperature	100	150	200	250	300
GRT-194	Friction coefficient	0.39	0.39	0.40	0.42	0.42
	Werar rate	0.10	0.13	0.11	0.12	0.16
	Friction	242	242	243	255	259

Product Description
GRT-194 clutch facing uses core-spun yarn composite cloth as skeleton material,High temperature resistant resin and rubber as adhesive,with high quality friction performance regulator, high-quality fill material , production with traditional techniques.
This type clutch facing has the advantages of high temperature resistance, wear-resistant, rotation of the burst strength, stability of friction coefficient and other characteristics. The clutch facing suitable for light and heavy-duty truck.
Key Performance Indicators:
1,Density:1.80±0.1g/cm2.
2,Hardness:HRL60-90
3,Bending Strength≥50(N/mm2),The maximum strain≥15(10-3mm/mm).
4,The friction and wear performance meets the requirements in the table.:

Temperature	100	150	200	250	300	And then100
Coefficient of friction(μ)	0.43±0.08	0.43±0.09	0.43±0.10	0.43±0.11	0.43±0.12	0.43±0.08
Wear rate(ν) 10-7cm3/(N·m)	≤0.20	≤0.25	≤0.30	≤0.35	≤0.40	/

5,Rotation of the burst strength(200×130):At room temperature≥12000Go/Sub-;200≥10000Go/Sub-.



FAQ:

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

---
