Hydraulic Angle Steel Flange Production Line /Angle Iron Cutter Punching Machine

Product Description

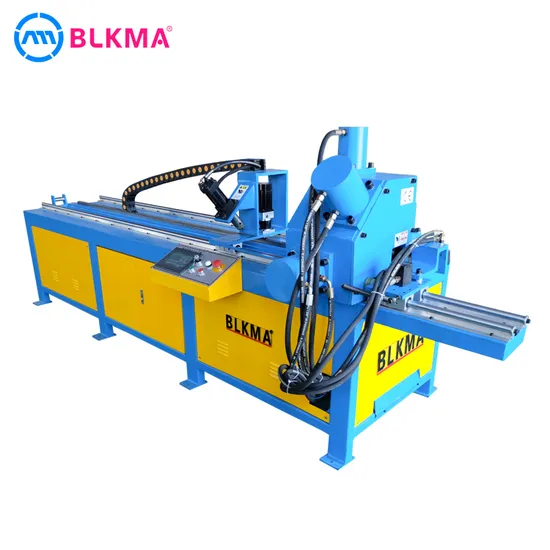

HVAC CNC angle steel flange production line

YOUTUBE VIDEO

https://youtu.be/duK1-SNlCWg

Performance Features:
Fully automatic angle steel flange production line,or CNC angle steel flange production line,is mainly for punching and cutting duct angle steel flange.The machine are designed to feed,punch,cut automatically in order to save labor improve efficiency.It's very fast,accurate and highly automatic.
Main Configuration:

1. Beijing Huade or hydraulic system from Taiwan

2. Cutter and punching die which are both made of Japan SKH51

3. Servo motor-driven feeding system

Performance Features:
1. It's a brand new design which can keep angle steel tailing less than 350mm.
2. It's controlled by servo motor and its feeding dimensions are accurate.
3. It only requires to input the size of workplace,distance between holes and how many holes
to punch when programming,which is very easy to operate.
4. With production memory functions,the production orders can be tracked and checked.
5. The new design mold can complete the angle steel switching within 5 seconds,with the durable
punch.

Main Technical Parameters:
1. Scale of angle steel to process: #3-#5 angle steel
2. Common punching sizes:big- sized: 9.5*13mm,small-sized 4.2-5.2mm
3. The number of punches which can be installed simultaneously: 2
4. Common length of angle steel: 6000mm
5. Machining accuracy no more the: 0.5mm
6. Feeding speed of angle steel: 15-20m/min

Model	Working range	Power (kw)	Weight (kg)	Dimension L*W*H (mm)
JG-50	30,40,50 angle steel	5	900	3500*900*1300

Detailed Images:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our
factory for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance
before the shipment.
4. OEM is available?
Yes.

---
