Product Details
Product Description
Product Description
Product Name

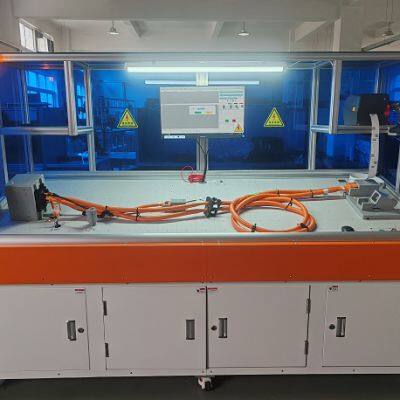

| High Voltage Wire Harness Testing Bench Top
|
Power
| Electricity
|
Type
| OEM/Customized
|
Brand Name
| Cleanknow/Customized
|
Model Number
|
|
Display
| Monitor Size on demand
|
Interface
| USB Interface/Manual
|
Overview:
The High Voltage Testing system has been specially developed for testing of high-voltage and data sensor cables. It conforms to international standards and is widely used in the cable assembly of automotive industry，etc.
Function and brief characteristics:
1: Equipped with over voltage protection, over current protection, leakage protection, which can greatly protect the safety of operator;
2. Arbitrary point to point testing;
3. Humanized software operation interface to help administrators to edit quick test procedures;
4. With administrator and operator double password , effectively ensure the control and security of the test program;
5. Synchronous recording of test data helps customers promptly understand product quality;
6. Printer function, freely to edit printing content;
7. Bar code scanning automatically loads test file and scan code test;
8. Voice broadcasting of test results.
Technical Specifications and Data:
AC
| Output Voltage
|
Output
| 0.05-5Kv
|
Measurement Accuracy
| 1% + 5v
|
Display Accuracy
| 2 V
|
Frequency
| 50Hz/60Hz
|
Power
| 150VA Max.
|
DC
|
|
|
Output
| 0.05-6Kv
|
Measurement Accuracy
| 1% + 5v
|
Display Accuracy
| 2 V
|
Power
| 60 VA Max.
|
IR
| Output
| 0.05-1Kv
|
Measurement Accuracy
| 1% + 5v
|
Display Accuracy
| 2 V
|
Insulation Resistance
|
IR
| Voltage
| DC range: 0.05 - 1kV, voltage accuracy: 1.5% ± 5V
|
Measurement Range
| 1MΩ-50GΩ
|
Measurement Display Accuracy
| 0.1MΩ
|
Measurement Accuracy
| ≥500V: 1MΩ-1GΩ :±5%±10 counts,
|
1GΩ-10GΩ :±10%±10 counts,
|
10GΩ-50GΩ :±15%±10 counts;
|
≤500V:0.1MΩ-1GΩ:±10%±10 counts
|
Arc Test
|
Setting method
| Programmable
|
The range of cutting off current
| AC:1mA-15mA, DC: 1mA-10mA
|
Detection time
| 10µs approx
|
Precision Resistance Test
|
Continuity
| Setting Range 0.1-500K
|
Resistance
| 0.1-100KΩ; ±3%±0.1
|
100K-1MΩ; ±5%
|
0.01-75Ω; ±3%±0.01
|
ICR Test
|
Frequency
| 50Hz-1MHz optional
|
Test Signal Level
| 0.1V-2V
|
Bias Current
| Internal: 0-1A optional
|
External: 0-120A optional
|
>>
