MY1022 Die, shear blades, Hydraulic grinding machine Surface grinder China

Product Description

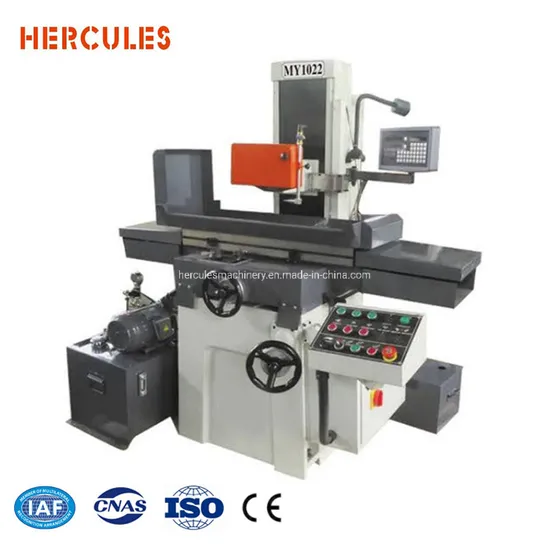

MY1022 Precision Hydraulic Surface Grinder for metal Grinding
Features:
1) The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
2) Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
3) The main mechanical valve is a special valve grinder, is divided into two parts,
the mechanical commutation control, throttle control part and unloading function, can realize the station start and stop.
4) Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed,
according to user needs with a permanent magnet sucker or electromagnetic sucker.
Specification:

Table size(L×W)		mm	520x250
Max.travel of table		mm	560x260
T slots(Width×No.)		mm	14×1
Distance from spindle center to table surface		mm	450
Wheel size(dia×width×bore)		mm	200x20x31.75
Max.Spindle speed		rpm	2850
Table longitudinal speed(X axis)		m/min	3-20
Table horizontal the amount of feed(Y axis)	Continuous	mm/min	150
	Intermittent	m/min	0-5
	The handwheel rotates	mm	4
	Hand wheel each grid	mm	0.02
Vertical feed wheel feed	The handwheel rotates	mm	2
	Hand wheel each grid	mm	0.01
Spindle motor		Kw	1.5
Coolant pump		W	40
Hydraulic motor		Kw	1.5
Working pressure		Mpa	3
Fuel tank capacity		L	80
The maximum flow		L/min	18
The machined surface of the base of parallelism		mm	300/0.004
Surface roughness		μm	Ra0.32
Machine weight		kg	1250
Packing weight		kg	1350
Packing size(LxWxH)		mm	1750x1350x1960

Standard Accessories:
Coolant tank, Magnetic chuck, Balancing arbor, Wheel flange, Wheel extractor,
Leveling wedge and bolt, Tool box and tools, Standard grinding wheel, Working lamp,
Wheel dresser stand (not include diamond pen)
Optional Accessories:
Parallel wheel dresser,
Digital readout
Wheel balance stand
Coolant tank with magnetic separator and paper filter,
Coolant tank with magnetic separator
Hercules Machinery Equipment Ltd.
Pictures for reference only:

---
