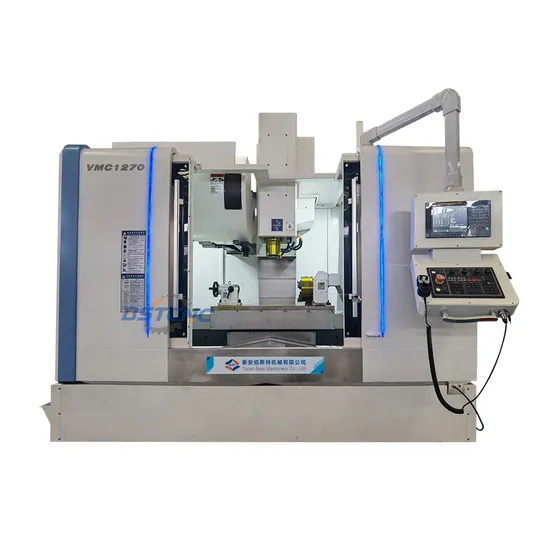

Vmc1270 4th Axis 5th Axis Vertical CNC Machining Center CNC Milling Machine

Product Description

Product Description
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Product Parameters

Items	VMC1270 CNC MACHINING CENTER
Travel	X axis	1200mm
	Y axis	700mm
	Z axis	700mm
	Spindle nose to table	150-850mm
	Spindle nose to column	780mm
Feed	max X rapid feed	36m/min
	max Y rapid feed	36m/min
	max Z rapid feed	36m/min
	Cutting feed	1-10000mm/min
	Torque	X:23N.m Y:23N.m Z:23N.m
Table	Table size	1300×700mm
	Max load	800Kg
	T slot	5×18×125mm
Spindle	Type	Belt
	Speed	8000rpm
	Spindle taper	BT40-150
	Main motor	11KW/15KW
Accuracy	Accuracy (JIS)	±0.005/300mm
	Repeatability (JIS)	±0.0075mm
Other	Weight	8200 Kgs
	Machine Size	4500×2300×2580

Standard configuration: Optional :
-GSK218M/25i Control system; -Fanuc ,Siemens ,Mitsubishi,KND,HNC....
-Taiwan BT40-150-8000RPM spindle; -Chain chip conveyor ;
-Taiwan Arm Type Tool Changer 24T; -Spindle oil coolant;
-Taiwan Hiwin linear guideways and ball screw; -Taiwan TJR brand the 4th axis ;
-Three color alarm Lamp; -Renishaw tool setter TS27R ;
-Automatic Central Lubrication System and Cooling system; -Online measuring system OMP60;
- Full Enclosure Machine Guard; -Water out of the spindle center;

---
