US$18,500.00-22,500.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Roller-Bending Machine
Effective Width
400mm,433mm
Aluminum Thickness
0.6-1.0mm
Galvanized Thcikness
0.6-0.8mm
Transport Package
Standard Package for Export
Production Capacity
15-20sets/Month
Packaging & Delivery
Package Size
150.00cm * 100.00cm * 180.00cm
Package Gross Weight
1000.000kg
Product Description
YX65-400-433 Automatic Hydraulic Roof Crimping metal sheet bending machine
1. Specifications of metal sheet bending machine
YX65-400-433 Automatic Hydraulic Roof Crimping Bending Machine ,Rolling Forming Machines and Cold Forming Machine's informations are as follows:
Main Technic Data:
| 1. | Dimension | 1500*1000*1800mm |
| 2. | Weight | 1000KGS |
| 3. | Model | YX65-400-433 |
4.
| Hydraulic Power | 5.5KW |
| 5. | Effective Width | 400mm,433mm |
| 6. | Voltage | 415V/60HZ/3PH |
| 7. | Aluminum Thickness | 0.6-1.0mm |
| 8. | Galvanized Thcikness | 0.6-0.8mm |
| 9. | Min. Strike Radius | 1m |
| 10. | Working Speed | 3-5m/min |
The Sample of Curving Machine:
Technical data:
| Model Number | YX65-300-433 | KLS25-220-530 | YX65-250-600 |
| | | | |
| Size | 2000*1400*1500mm | 500*600*1100mm | 1600*900*2000mm |
| Weight | 1500KGS | 150KGS | 1600KGS |
| Motor Power for Feeding Roofing | 1.5KW | | |
| Motor Power | 5.0KW | 0.75KW | 4KW |
| Processing Speed | 3-5m/min | 6-8m/min | 8-16m/min |
| Voltage | 380V/50HZ/3PH | 240V/50HZ/1PH | 380V/50HZ/3PH |
| Thickness for steel roofing | 0.3-0.5mm | 0.5-0.8mm | 0.6-0.8mm |
| Mini. Curving Radius | 0.8 m | | |
Usage: Curving normal galvanized and prepainted galvanized steel, and Aluminum roof to curve with convex or concave shape, only convex or concave curved for one piece roofing;

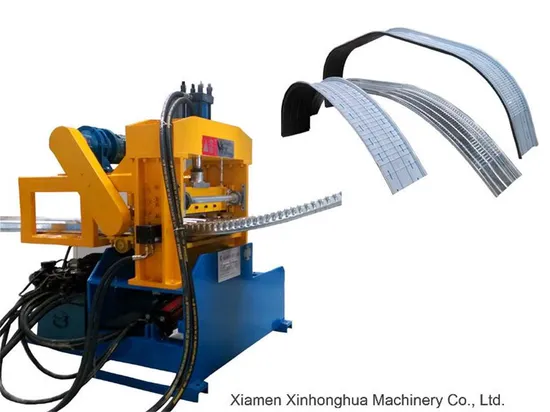

2. Pictures Of metal sheet bending machine
3. Certifications of Product
4. Applications of Product
Our Company View
Xiamen XinHongHua Machinery Co., LTD.is specialized in design and manufacture
roll forming machines for 15 years. With developing technical and various experience,
our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline
forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting
Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,
Floor Decking Machine and Highway Rail Forming Machines, etc.
|
