Product Description
Product Description

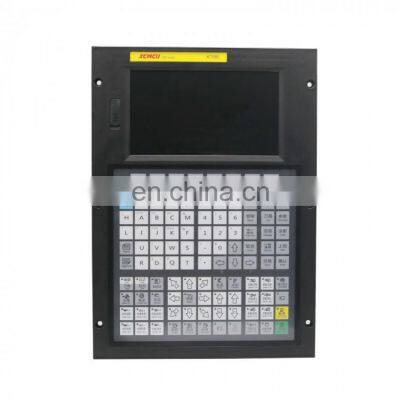

XC709D 6-Axis CNC Numerical Control System for Carving Milling Drilling & Tapping Product Description Description:XC709D multi-function numerical control system is perfect for engraving, milling, drilling, and tapping. With 32-bit high-performance microprocessor, it features real-time multi-task control technology. It is designed with hardware interpolation technology, full linkage, and high-speed algorithm for small lines. Its interpolation accuracy is accurate as 0.001mm, and its speed up to 30 m/min.It is the best choice for your engraving machine, small processing center, CNC milling machine and CNC drilling machine.Features:- Based on 32-bit microprocessor, it supports full linkage, 0.001 mm interpolation accuracy, and direction + pulse and orthogonal pulse.- 7-Inch Color LCD: 800 x 480 resolution. Equipped with 8 softkeys, it is easy to learn and operate. It offers rich display interfaces for parameter classification, alarm log, system diagnosis and the like. It facilitates debugging and maintenance.- Using international standard G instruction which is compatible with FANUC system instruction.- 40 kinds of G command codes support drilling and tapping cycles.- Full screen editing of program for your parts. Built in 1G memory for storing N pieces of parts programs.- USB Interface: Support reading and writing, data backup for U disk file.- I/O 24/24: It is flexible to use, for its I/O ports can be expanded to 96/96.- Two Languages: Chinese and English operation interface for convenient operation.- The system adopts acceleration and deceleration control before interpolation.- Support length and cutter radius compensation.- Support processing via external pendant handwheel.- Supports multi-level operation authorization for easy management, featuring time-limited system locking function.- Supports for G code files of third-party software, including UG, Mastercam, PowerMill, Feature CAM, ArtCAM, JDPaint, Wentai.- Flexible to use a variety of tool magazines, supporting self-programming tool magazine.Technical Specifications:Basic functions:- Number of Controlled Axes: 6-Axis- Number of Linkage Axes: Full Linkage- Tool Magazine: Support; Need to edit the code of tool magazine- Spindle: 2-way analog spindle, in which spindle 1 can be digital spindle (occupying a digital spindle)- Spindle Monitoring: Yes- Minimum Instruction Unit: 0.001 mm- Maximum Instruction Value: ±99999999 x mini- Fast Feed Speed: 30,000mm/min- Rate of Feed: F0, 25%, 50%, 75%, 100%- Pulse Modes: Mode 1: Direction + Pulse; Mode 2: Orthogonal Pulse (Recommended, featuring anti-jamming if your driver supports)- Maximum Frequency: Settable in 100Khz, 200Khz, 500KHz. (500KHz can only be achieved in orthogonal output modes of all axes)- Feed Rate Multiplier: 0-150%- Electronic Gear Ratio: 1-65535:1-65535- Automatic Acceleration & Deceleration: Yes- Advanced Algorithm for Small Lines at High Speed: Yes- Compatible with Handwheel: Yes- Location: G00 (Linear Interpolation Location)- Interpolation: Linear (G01), Circular (G02/G03/G12), Spiral-line Interpolation- Returning to Reference Point: Automatically (G28)- LCD: 7-inch TFT LCD screen with resolution of 800 x 480- MDI Softkey: 8- Step Feed Amount: x1, x10, x100- Communications Interface: U disk interface- External Handwheel Interface: Yes- I/O Interface: 24/24 (Extensible to 96/96)- Pause (seconds): Yes- Accurate Stop Status: Yes- Accurate Stop: Yes- Storage Travel Checking: Yes- MDI Running: Yes. It supports multi-segment operation- Reset: Yes- Jump Switch: Yes- Single Block Operation: Yes- Program Protection Switch: Yes- Self-diagnostic Function: Yes- Emergency Stop: Yes- Power Supply: Single-phase AC220V+10%-15%, 50Hz±1Hz- Coordinate Systems: Machine Coordinate System (G53), Workpiece Coordinate System (G92, G54-G59), Local Coordinate System (G52), Plane Designation of Coordinate System- Automatic Coordinate System Setting: Yes- Decimal Point Input: YesAuxiliary Function:- Auxiliary functions: M2 digits, M code customization, manual/MDI/automatic control of spindle forward, reverse and stop; control of coolant to start and stop; control of lubrication to start and stop, etc.Spindle Functions:- Spindle Function: Dual Spindles- Digital Spindle: Spindle 1 supports digital spindle, occupying a digital axis (Z axis does not support), featuring stable speed- Tapping: Support- Spindle Analog Output: Yes. Dual-spindle outputTool Functions:- Tool function: Support automatic tool change, support split-centered tool, three-point centered tool alignment- Tool Compensation Memory: - 9999.999 to 9999.999, 99psc- Tool Compensation: Tool Length Compensation & Cutter Radius CompensationEditing Operation:- Editorial Functions: Parameters, Diagnostic Bit Input, Program Editing, MDI Multi-segment Execution- Storage Capacity: 1G- Number of Stored Programs: 500pcs- Display of Program Names: Chinese, English, Numbers, and Combinations- Looking for Program Lines: Yes- Skip Optional Program Segment: Yes- Program Switch: YesDisplay:- Displayed Language: Chinese, English- Processing Time & Number of Parts: Display- Spindle Speed, M/S Instruction: YesPackage Included:- 1 x XC709D 6-Axis CNC Numerical Control System Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
