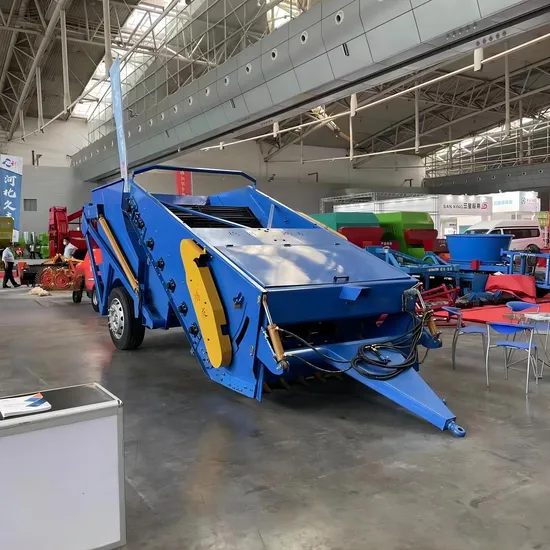

Large 12js-130 Agricultural Stone Picker Machine

US$13,717.86

1-4 set

US$12,820.73

5+ set

Basic Info.

Model NO.

12JS-130

Application Field

Agriculture

Farming Policy

Bed Planting Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Movable Operation

Traction Type

Traction

Drive Type

Chain Drive

Arbor Configuration

Horizontal Axis

Certification

Color

Blue

Warranty

One Year Warranty

Model

12js-130

Structural Style

Trail-Type

Driving Mode

Wheel Type

Number of Tires/Tracks

Tire/Track Spacing

2250mm

Working Size

7000mm*2700mm*2800mm

Overall Weight

4600kg

Working Width

1300mm

Supporting Power

200HP

Unloading Height

2000mm

Working Efficiency

0.2-0.27ha/H

Transport Package

Container/Wooden Case/Iron Frame/Plastic Film Wind

Specification

7000mm*2400mm*2550mm

Trademark

HONGYOU

Origin

China

HS Code

8432809000

Production Capacity

20000sets/Years

Packaging & Delivery

Package Size

700.00cm * 270.00cm * 280.00cm

Package Gross Weight

5100.000kg

Product Description

Product Description
Experience unparalleled efficiency with our Automatic Soil Loading Stone Picker Machine, engineered specifically for farmland applications. This innovative equipment is designed to streamline your agricultural processes, ensuring your fields are optimally prepared for planting.
Model: 12JS-130
The main function:
Our state-of-the-art Stone Picking Machine, also referred to as a Stone Picker or Rock Picker, is an essential tool for modern farming. This advanced machinery is meticulously crafted to extract stones, rocks, and various debris from your fields. By doing so, it significantly enhances soil quality, boosts agricultural productivity, and safeguards your farming equipment from potential damage during future operations.
Detailed Photos
A stone picking machine can be self-propelled or a tractor-mounted device that meticulously collects stones and other unwanted materials from the soil's surface. These machines typically feature an array of rotating screens, belts, paddles, or rollers that efficiently separate stones and debris from the soil, depositing them into a collection hopper or container for easy removal. Stone picking machines come in various sizes, capacities, and designs to meet diverse farm sizes and requirements. Experience enhanced productivity and cleaner fields with our expertly engineered solutions.
Product Parameters

Model	12JS- 130	Dimensions(mm)	710025002700
Operation width(mm)	1300	Operating depth(mm)	0-300
Pick Up The Smallest Size	28.8mm/41mm	Supporting power	130HP
Weight(kg)	4600	Conveyer Type	Grid Chain
Conveyor Chain Gap	50.8mm/63.5mm	Volume Of Collection Box	4.2m³
Heating Method	Hydraulic Cylinder	Unloading Height	2000mm

Certifications
Packaging & Shipping
To ensure the safe and secure delivery of your valuable products, we provide a diverse range of superior packaging options, including direct loading into containers , sturdy wooden case packing , robust iron frame wrapping and protective direct wrapping . Choose the most suitable packaging solution tailored to your specific needs and preferences.
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, a region celebrated as the 'Agricultural Machinery City'. Established in 2002 , the company boasts 22 years of rich processing history and unparalleled experience, positioning itself as a high-tech manufacturer specializing in agricultural machinery for underground root crops.
Our extensive product line includes five comprehensive series encompassing more than 55 varieties , such as potato harvester machines , mulch film recovery machines , field stone picking machines , ridging and mulching machines , and seeding killer machines .
The company is proud to have achieved ISO9001-2008 quality system certification and CE certification . We steadfastly adhere to the business philosophy of quality first, customer first , utilizing cutting-edge technology and professional-grade products to contribute significantly to the modernization of agriculture.
We extend a heartfelt invitation to partners nationwide to collaborate with us in advancing agricultural modernization and creating a brilliant future for agricultural machinery. We warmly welcome both new and returning partners.
Our facilities include both an established factory area and a newly constructed area for producing and processing machines. The site features a finished product stacking area, a machine processing area, and a production workshop.
Customer visit factory
