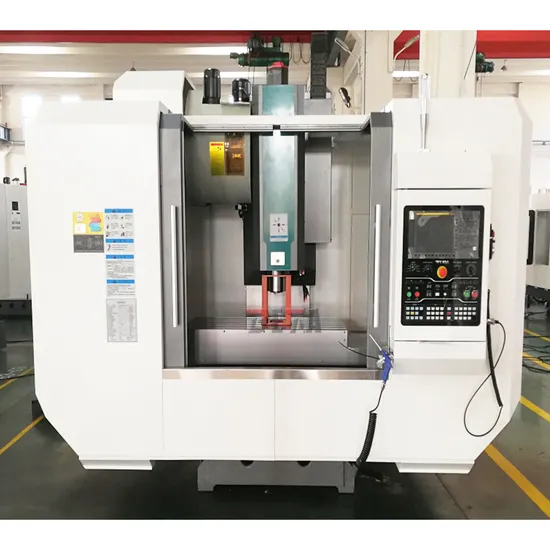

Vmc1160 CNC Vertical Milling Machining Center Tool Changer for Metal

Product Description

VMC1160 CNC vertical milling machining center tool changer for metal
Standard configuration:
GSK CNC controller system
16 pcs or 24 pcs tools automatic tool changer
X/Y/Z-axis linear guide way and ball screws from Taiwan
BT40/BT50 spindle with 8000rpm/6000rpm speed
Full protection cover
work light & alarm light
automatic centralized lubrication system,
Water cooling & air cooling
MPG
Tools & tool box
Optional accessories:
Siemens/Fanuc CNC controller
The 4th axis rotary table

Model	Unit	VMC1160
Worktable size	mm	1200x600
Max.loading capacity of worktable	kg	1000
X/Y/Z-axis travel	mm	1100/600/600
Distance between spindle nose to worktable	mm	150-750
Distance between spindle centre to column guide	mm	650
X/Y/Z-axis rapid moving speed	m/min	24/24/20
X/Y/Z-axis cutting feeding speed	mm/min	1-5000
Spindle taper	-	BT40
Max.spindle speed	rpm	8000
Spindle motor power	kw	11
Position accuracy	mm	0.008
Re-position accuracy	mm	0.005
Automatic Tool magazine pieces	pcs	24 pcs ATC
Overall size	mm	2700*2400*2700
Machine weight	kg	6700

TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.

---
