Through-The-Weave NBR Hose for Water Discharge Drainage Irrigation Sludge Agriculture

Product Description

Through-The-Weave NBR Hose for Water Discharge Drainage Irrigation Sludge Agriculture
Product Description
ZYfire Hose Corporation, founded in 2000, we research and produce Lay flat frac hose, fire hose, rack hose, industrial hose, forestry hose, snow-making hose, irrigation hose, drag hose, potable water hose, No-dig pipe rehabilitation liner, TPR layflat hose, hose couplings, landing valves and other fire fighting equipments.
Oneflex Premium

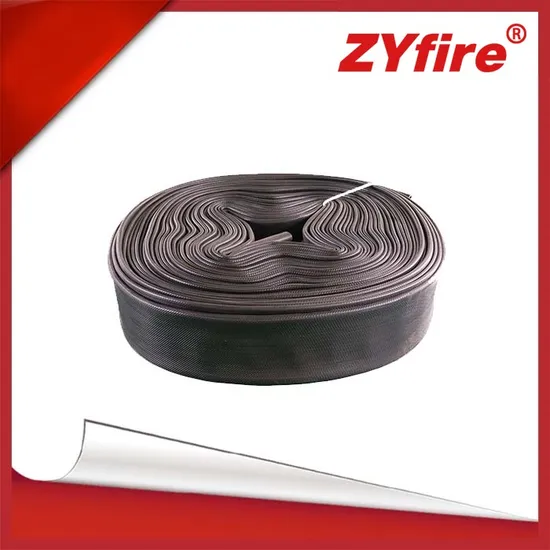

Through-the-weave NBR Oneflex water hose
NBR Oneflex Color: Black, Red, Yellow, White, Orange, Purple
NBR Lining Properties: Ultimate Tensile Strength: Tensile strength of the lining and cover shall not be less than 1500psi (10500kpa); Ultimate Elongation: 400% minimum; Accelerated Aging Test. Tube and cover: Nitrile/TPR Blend, ribbed cover for maximum abrasion resistance. Thick wall.
Reinforcement: 100% virgin high tenacity polyester Jacket.
Application: Water discharge, Transfers, Drainage, Irrigation installations, Pumping of sludge and liquid fertilizers, Chemical industry, Refineries, Air pressure Premium Solution.
Standard length: 15m (50ft), 20m (66ft), 30m (100ft), 60m (200ft), 90m (300ft), 200m (660ft), 300m (990ft)
Temperature: -25ºC to +100ºC (-13ºF to 212ºF)
The tensile strength and ultimate elongation of the vulcanized rubber compound which has been subjected to the action of oxygen at a pressure of 300psi +/-10psi, (2100kpa+/-70kpa) and temperature of 70 degrees centigrade +/- 1 degree centigrade (158 F +/- 18F) for a period of 96 hours shall be greater than 60% of the original properties stated.

ID		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight				Elongation At WP%	Expansion At WP%	Temperature Range
inch	mm	mm	inch	mm	psi	psi	lbs/ft	tolerance lbs/ft	kg/m	tolerance kg/m	max	max
3"	76	76-78	0.118±0.008	3.00±0.20	200	600	0.67	±0.067	1.00	±0.10	≤5	≤5	-30ºC to 80ºC -22ºF to 176ºF
4"	102	102-104	0.126±0.012	3.20±0.30	200	600	0.94	±0.067	1.40	±0.10	≤5	≤5
6"	152	154-157	0.126±0.012	3.20±0.30	200	600	1.47	±0.067	2.20	±0.10	≤5	≤5
6"	152	154-157	0.138±0.012	3.50±0.30	250	750	1.68	±0.067	2.50	±0.10	≤5	≤5
6"	152	154-157	0.165±0.012	4.20±0.30	300	900	1.88	±0.134	2.80	±0.20	≤5	≤5
8"	204	204-207	0.157±0.012	4.00±0.30	200	600	2.41	±0.134	3.60	±0.20	≤5	≤5
8"	204	204-207	0.165±0.012	4.20±0.30	300	900	2.55	±0.134	3.80	±0.20	≤5	≤5
8"	204	204-207	0.197±0.012	5.00±0.30	400	1200	2.75	±0.134	4.10	±0.20	≤5	≤5
10"	254	254-257	0.173±0.016	4.40±0.40	200	600	3.10	±0.134	4.63	±0.20	≤5	≤5
10"	254	254-257	0.177±0.016	4.50±0.40	300	900	3.35	±0.134	5.00	±0.20	≤5	≤5
12"	306	306-311	0.157±0.016	4.00±0.40	150	450	3.35	±0.201	5.00	±0.30	≤5	≤5
12"	306	306-311	0.177±0.016	4.50±0.40	200	600	4.02	±0.201	6.00	±0.30	≤5	≤5
14"	356	356-360	0.189±0.016	4.80±0.40	150	450	4.96	±0.201	7.40	±0.30	≤5	≤5
16"	400	406-411	0.181±0.016	4.60±0.40	100	300	5.13	±0.201	7.65	±0.30	≤5	≤5
