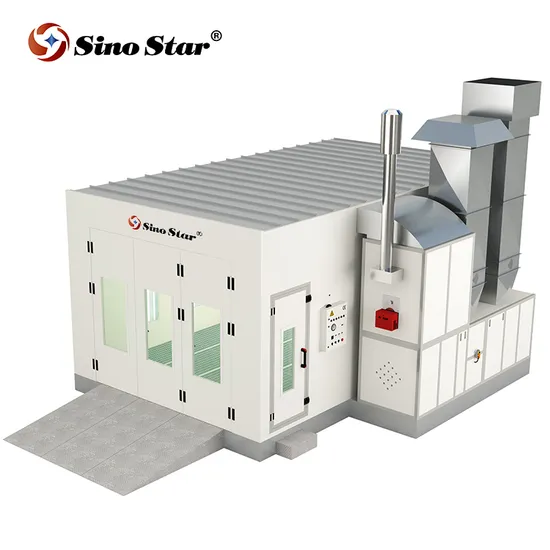

1. The Technical parameter of Spray booth:
| MODEL:SS-8000-EU |
| Outside Dimension (mm) | 7006 * 5360*3480(L*W*H) | Inside Dimension(mm) | 6900 * 4000 * 2650(L*W*H) |
| Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 650*1800(W*H) |
| Total Power | 19KW |
| Cabin System | Wall panel | 50mm Rock Wool panel, steel sheet thickness: 0.6mm |
| Ceiling panel | Galvanized steel sheet. |
| Basement | 300mm depth, middle with grids, two side with checkered plates. |
| Ramps | three pieces 2000*900mm ramps |
| Glass | 5mmsafety tempered glass |
| Windows | circularglass Windows |
| Air Make-up System | Air Inlet fan system | 1 * 7.5kw turbo fan, ABB brand motor |
| Exhausted fan system | 1 * 7.5kw turbo fan, ABB brand motor |
| Air capacity for fresh air | 25000m3/h |
| Air Flowing speed | 0.3m/s |
| Air Control method | manual dampers for air inlet and exhausted system |
| Exhausted ducting | 8 meters air duct, one flop damper and one weather hood |
| Purification System | Pre-filter | G3 grade. Pockets filter. |
| Ceiling filter | EU5 / F5 |
| Floor filter | Green fiber glass filter / G3 grade |
| Exhausted fan filters | Pocket filter and active carbon |
| Heating System | Heat exchanger | SUS304 material, argon arc welding. |
| Heating burner: | RielloG20 diesel oil burner |
| Heating productivity | 180000Kcal/h |
| Spray to baking switch | Pneumatic Operated Damper |
| Chimney ducting | 3 meters stainless ducting and one chimney elbow |
| Max heating temperature | 80ºC |
| Heating time | 5-6min(20-60ºC) |
| fuel consumption | 6-8Litters /vehicle |
| Lighting System | Ceiling lights | 8 Units, each 4 x 18W Philips LED lamps, Total 576 W |
| Side lights | 8 Units, each 2 x 18W Philips LED lamps, Total 288 W |
| Illumination | 900LUX |
| Controlling System | Switched control panel | Spraying&baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm |
