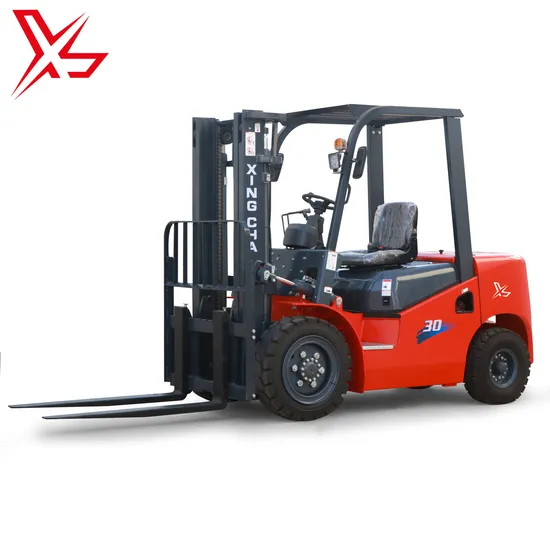

Warehouse Four Wheel Gasoline LPG Engine Drive Fork Lift Truck 2.5ton 3 Ton 7 Ton 10 Ton Rough All-Terrain Heavy Hydraulic Diesel Forklift for Sale

Product Description

Product Description
Detailed Photos
Customized Accessories
Product Parameters

Model			CPC(D)20	CPC(D)25	CPC(D)30	CPC(D)35	CPC(D)38
Rated lifing capacity		kg	2000	2500	3000	3500	3800
Load center distance		mm	500	500	500	500	500
propulsion			Diesel
Drving style			Seated
sizes
Maximum lifing height	H	mm	3000	3000	3000	3000	3000
Full height of the gantry (forks on the gound)	H1	mm	2000	2000	2070	2120	2180
Maximum hieght (with blocking shelf,unloaded)	H2	mm	4030	4030	4217	4217	4217
Free lifting height	H3	mm	150	150	155	160	160
Height of roof rack	H4	mm	2120	2120	2140	2140	2140
Minimum Ground Clearance	H5	mm	115	115	135	135	135
Distance from seat surface to roof frame	H6	mm	1050	1050	1050	1050	1050
Height of traction pin	H9	mm	290	290	310	310	310
Shelf height (calculated from the fork surface of the gantry)	H13	mm	1000	1000	1182	1177	1177
Overall length (with/without forks)	(L/L)	mm	3460/2540	3680/2610	3814/274	3820/2750	3870/2800
Wheelbase	L1	mm	1650	1650	1750	1750	1750
Front overhang	L2	mm	465	465	478	484	484
Rear overhang	L3	mm	425	495	520	520	565
Overall width	W1	mm	1160	1160	1225	1225	1225
Track width (front/rear)	(W3/W2)	mm	970/970		1000/970
Fork adjustment range (outer side of fork) (maximum/minimum)	W5	mm	1030/244	1030/244	1060/250	1060/250	1060/250
Min turning radius ( Exterior )	r	mm	2215	2270	2400	2400	2410
Min turning radius ( Interior )	' r	mm	35	35	80	80	80
Mast tilting(front/rear)	a/β	%	6°/12°	6°/12°	6°/120	6°/12°	6°/12°
Fork size	L4XWXT	mm	920X122X40	1070X122X40	1070X125X45	1070X125X50	1070X125X50
Minimum right angle stacking channel, tray 1000X1200 (width)	Ast	mm	3880	3935	4078	4084	4094
Minimum right angle stacking channel, pallet 1200X800 (width)	Ast	mm	4080	4135	4278	4284	4294
weights
total weight		kg	3300	3650	4270	4600	4750
tires
Number of wheels X=drive wheels			2X/2
Tire Type (front/rear)			Pneumatic tire
Tire size (front/rear)			7.00-12-12PR/6.00-9-10PR		28X9-15-14PR/6.5-10-10PR
Service brake			Hydraulic-Pedal type
parking brake			Mechanical - Manual

Company Profile
Exhibition
Certifications
FAQ Q1: Do you have an advantage in price?
A: We have a group of long-term cooperative raw material suppliers, and raw materials have price advantages. In addition, production personnel are skilled, and labor costs also have price advantages. Therefore, products of the same quality have a higher price advantage.
Q2:How is the quality of your product?
A: We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation, with a low failure rate and can be purchased with confidence.
Q3:How soon can you respond client inquiries?
A: Our team is consisted of a group of diligent and dynamic people, working 24/7 to respond client inquiries and questions all the time.
Q4: Can you provide customized services?
A: We can provide various customization services, including color customization, logo customization, body size customization, and body function customization. If you have customization needs, you can communicate with sales personnel.
A5:How long does it take for your product to be produced?
A: About standard products, we can deliver immediately. If customized or complex products are needed, the production time will be 5-10 days.

---
