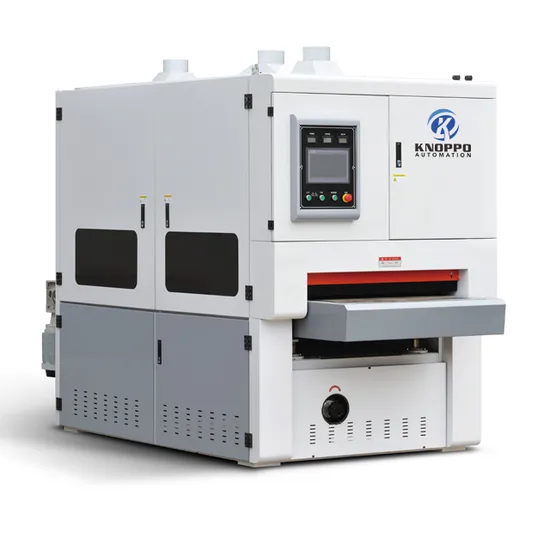

Sheet Metal Brushing Deburring Machine for Laser Cutting Plasma Cutting Parts Edge Polishing

Product Description

Product Description
Metal deburring machine is a device used for removing burrs and sharp edges from metal workpieces. It typically uses a grinding wheel or cutting tool to process the material, and can remove burrs left over from processes such as sawing, drilling, turning, and so on while also providing a smooth finish to the surface of the workpiece. Metal deburring machines are widely used in industries such as mechanical manufacturing, automotive, aerospace, electronics, and others, and can significantly improve the accuracy and surface quality of workpieces.
Main functions
The deburring machine is composed of sand belt, the belts work on metal surface to realize deburring, it is used for removing the burr produced during laser cutting, plasma cutting, etc.

Product Parameters
Parameters of the deburring machine
1. Maximum working width: 1000mm
2. Thickness of metal parts: 1-80mm
3. Minimum size of metal parts: ≥ 50 × 50mm
4. Feeding speed: 0.8-5m/min
5. Total power: about 27KW, the actual operating power is about 20KW.
6. Belt main motor power 11KW*2
7. Conveyor motor power 1.5KW
8. Sand belt size: 1900 × 1020 mm
9. Conveyor belt size: 3020X1000mm
10. Noise: ≤ 80dB
11. Dust collecting efficiency: ≥ 85%
12. Weight: approximately 2.6T
Main configuration of deburring machine

NAME	Specification	Quantity
Belt	1900mm×1020mm	2
Belt main motor power	11KW	2
Conveyor motor power	1.5KW	1
Conveyor belt	3020×1000mm	1

Parts brand

Main motor	Made in china
Electrics	CHNT, China
Frequency converter	Made in China
Electromagnetic valve	China Taiwan Airtac
Control button	CHNT, China
The sand belt deviation correction sensor	Banner, USA
Main bearing	NSK, Japan
Belt bearing	TR

Sample
Customer Feedback

Certifications
Our machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Company Profile
Knoppo Automation is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 laser cutting systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.
The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine , laser marking machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.

---
