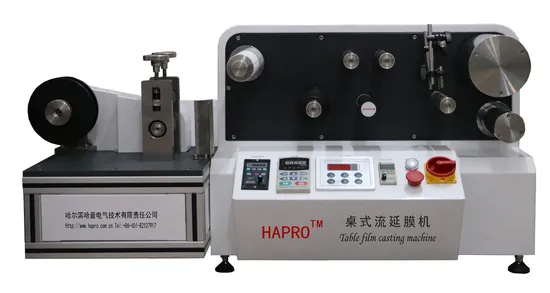

Desktop Polymer Logistics Film Extension Machine

Product Description

Desktop polymer logistics film casting machine needs to be used together with the Desktop single screw extruder. The forming principle of the casting film is to extrude the uniformly plasticized plastic melt in the extruder through the flat die head, and then enter the quench casting roll after cooling and curing, traction, cutting into the casting film of a certain width, and finally coiling it into a roll. The coiling device adopts friction coiling, and is equipped with edge cutting device and edge material receiving mechanism. The laboratory Desktop casting film machine produced by our company adopts precision extrusion and high performance casting molding technology, which is suitable for the casting film forming of PE, PP, PS, ABS, PVC, PET, PC and other commonly used polymer materials such as stretch film, winding film and plastic film. Among them, the laboratory casting film machine can also be equipped with a vision system to realize the expanded functions of detecting the dispersity of raw materials and detecting the quality of films such as gel point, fisheye and black spot. It is an ideal experimental equipment for high precision and high performance film forming. It can complete the processing of the film in the experimental environment, and is more suitable for scientific research institutions, colleges and universities laboratories, production enterprises laboratories and enterprises engaged in small-scale film production.

Photograph	Performance Index	Performance Parameter
	Film casting die	150×1 mm (0-2 mm adjustable)
	Power of die heating	1.6 kW
	Film thickness	0.02-0.5mm
	Max. film width	70mm
	Roller Speed	0-110mm/s
	Diameter of upside roller	140mm
	Diameter of below roller	100mm
	Height of center	547mm
	Crimp Ways	Tension adjustment
	Cooling	Water cooled
	Total power	0.5 kW
	Weight	120 kg
	Power supply voltage	3×380V,50/60 Hz ,+N +PE
	Dimension (L×W×H)	1000×450×650 mm
	Cutting-edge device for Casting

---
