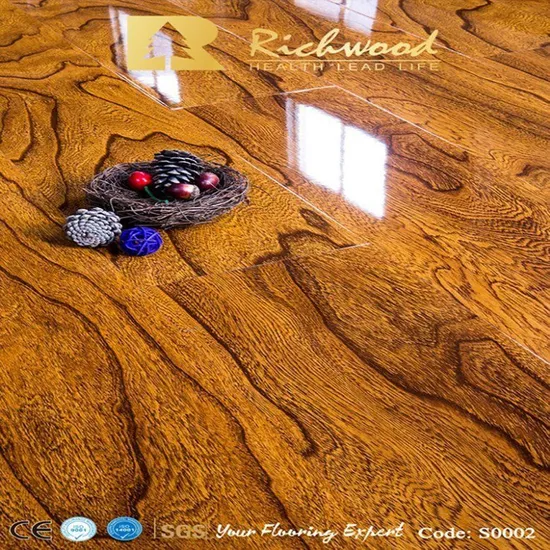

12.3mm E0 AC4 High Gloss Walnut Water Resistant Engineered Wood Laminate Flooring

Product Description

Product Overview
Piano surface is the structure that spraying UV lacquer to flooring surface through German high-density spray technology. With advanced spray advantage, UV lacquer and aluminum oxide wear layer combine perfectly, shut out the moisture, make floors more "clean". This pure sheen fully opens up your imagination, creates a noble, elegant, romantic and comfortable dream for you, even you can hear the sounds of nature.
Product Parameters
Dimension

Length		Construction
2250mm	1218mm	High Density Fiberboard (HDF)
810mm
Width		Variable Length
240mm	197mm	Y
165mm	145mm
126mm	101mm
Thickness		Variable Width
7mm	8mm	Y
10mm	12mm
15mm

More Details

Color Code		Surface Texture
S0002		Piano
Color/Finish Family		Gloss Level
Brown		Low gloss(Matt),Medium Gloss,High Gloss
Shade		Edge Type
Medium		Micro bevel
Species		AC Rating
Elm		AC3	AC4
Style		Richwood's Exclusive
Wood Look		X
Plank Vishal		Underpad Attached
1-Strip		Depend on buyers
Pattern Repeat Frequency		Standard
W: 240mm	every 5planks	EN13329
W: 197mm	every 6planks
W: 165mm	every 7planks
W: 145mm	every 8planks	GB/T18102-2007
W: 126mm	every 9planks
W: 101mm	every 11planks

Installation

Indoor/ Outdoor	Indoor	Installation	Glueless, Click-lock system
Recommanded Usage	Residential	Subfloor Type	Plywood or Concrete
	Commercial
Installation Level	Above/On/Below	Installation Method	Float
Underlayment Required	Yes	For Use on Walls	Yes
Country of Origin	P.R.CHINA	Warranty	100% Quality Guarantee

Quality Guarantee
• ISO9001 Quality Control System
• Professional internal product and QC team
• Pre-inspection for all raw materials
• Mid-inspection during production from every process
• Final inspection by CIQ's laboratory or ourselves
• The customer's inspection is also acceptable.
• If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers.
Flooring Features
More Designs
Technical Data

Technical Data for Richwood laminate flooring
Characteristics	Test Standard	Unit	Standard or Rating
HDF density	GB/T18102-2007	KG/M3	≥850
Class 23	EN13329		general residential use in living rooms and dining rooms
Class 31	EN13329		more varied locations, such as small offices and other light commercial location
Class 32	EN13329		higher traffic commercial areas such as boutiques, busier offices, and restaurant
Abrasion resistance	EN13329,Annex E	R	AC3≥2000
			AC4≥4000
Formaldehyde E1	EN717-1	MG/M3	0.124
Length Tolerance	EN13329, Annex A	MM	≤0.5
Width Tolerance		MM	≤0.2
Thickness Tolerance		MM	≤0.5
Squareness of the element		MM	≤0.2
Straightness of the surface layer		MM/M	≤0.3
Flatness of the element		%	f w, concave ≤ 0,15 % f l, concave ≤ 0,50 %
Openings between elements(mm)	EN13329, Annex B	MM	average ≤ 0.15
			max ≤ 0.20
Height difference between elements(mm)		MM	average ≤ 0.10
			max ≤ 0.15
Dimensional variations after changes in relative humidity	EN13329,Annex C	MM	≤0.9mm
Light fastness	EN ISO105-B02		Blue wool scale ≥6
	EN 20105-A02		Gery scale ≥4
Static indentation	EN433	MM	No visible change
Surface soundness	EN13329,Annex D	N/MM2	≥100
Impact Resistance	EN13329,Annex F	MM	IC2
Resistance to staining	EN438		5, No visible changes
Resistance to cigarette burns	EN438		4
Effect of a furniture leg	EN424		No visible changes
Effect of a castor chair	EN425		No visible changes
Thickness Swelling rate(%)	EN13329,Annex G	%	≤18
Slip resistance	EN14041		DS

Scene Display
Certification & Exhibition
Exhibition
Production Process
Production Process
Equipment
1.Impregnated paper
2.Hot pressing
3.Cutting
4.Profiling
5.V bevel painting
6.Wax coating
7.Eva silence pad
8.Packing
Advantage
Better Quality, Increasing you sales
Our factory is committed to give you the quality you deserve. Using ISO9001 standard& German Technology, we invested a lot in Research & Development. We have a fully equipped lab for quality testing.
• ISO9001 Quality Control System
• Professional internal product and QC team Pre-inspection for all raw materials Mid-inspection during production from every process Final inspection by CIQ's laboratory or ourselves The customer's inspection is also acceptable.
• Third Party Laboratory support: SGS,Intertek...
• Efficient Claim Settlement If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers within 5working days.
Better Service, Saving your cost
• Order Weekly Update
• On-time delivery
• Free sample support
• Free new products samples into container
• Make professional & Special Samples, displays according to customer's requirement
• Develop products (design, size, surface and so on) based on customer's requirement
Better Team, Solving your worries
Positive attitude, professional knowledge, timely communication, responsible action. We are always here for you! • Professional Product Technology Team
• 10 Years Quality Control & Inspection Team
• On-time Communication within 24hours
• Always keep Promise
• Always ready to be your strong backing
Excellent "quality and service" perfectly solve worries for "worldwide customers";
Successful "cooperation and win-win" fully build a strong backing for "business partners"!
Richwood Laminate Flooring,Beyond Your Imagination!

---
