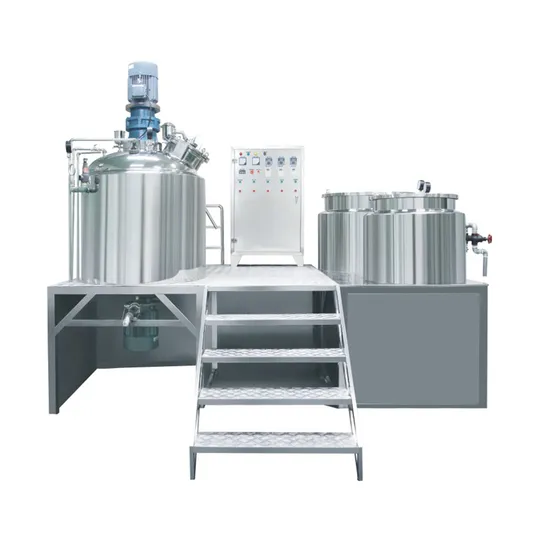

Body Lotion Emulsifying Machine

Product Description

Product Description The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content. Features: 1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min

Manufacturer	China LTPM Group Co., LTD
PN	200L vacuum emulsifying mixer
Capacity	Design volume: 200L, working capacity:160L
Kettle Cover	Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to-0.1 bar), pressure clamp
Mixing pot	Material		Inner layer: SUS316L thickness: 4mm
			Middle layer: SUS304 thickness: 4mm
			Outside layer: SUS304 thickness:3mm
	configuration		Bottom material exhaust, size: 1.5"
			Temp. sensor (0-199ºC)
			Electrical heating: 8kw, cooling water inlet
Stirring system	Homogenizer	1.Material: SUS316L; standard homogenizer 2. Power: 4kw/380/50Hz; RPM: 0--2800R/Min
	Stirring scrap and middle stirring	Material: SUS316L,Scrap material: PTFE
		1. Stirring scrap and middle stirring use the same motor 2,Power:1.5 kw/380V/50Hz;RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction
		Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system	1. Vacuum pump: water recycle, power 1.5kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating method	Jacket electrical heating
Exhaust method	Electric doom and bottom discharge or positive pressure discharge material
Pressure	Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box	SUS304 , 1.2mm thickness
Dimension	1900mm×600mm×2650~3500 mm
	Shelf is SS, platform with raised platform and SS guardrail
Spare parts	One year spare parts and tools
Guarantee	One year
Using life	More than 15 years

Product Details
Product Highlights
Final Product
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.

---
