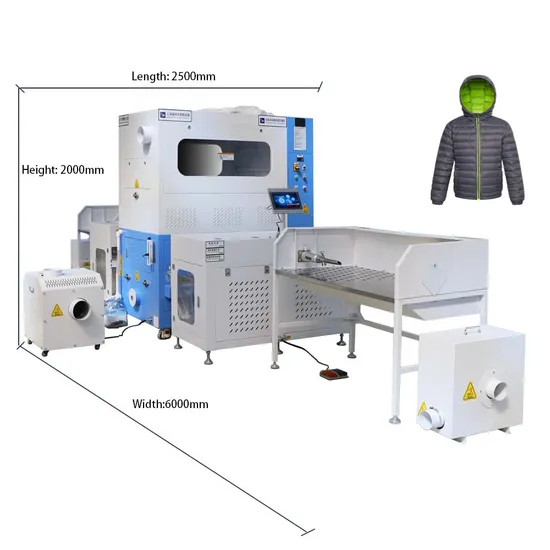

FUDA Dual Filling Ports Automatic 12 Weighing Scales Staple Fiber Padding Machine for Puffer Vests

US$12,999.00

1-4 Sets

US$12,888.00

5-9 Sets

US$12,666.00

10+ Sets

Basic Info.

Model NO.

2 Heads 12 Scales

Feature

Automatic Weighing, Charging & Suction, Quantitative Down Charging, Compact Size

Filling Valve Head

2 Heads

Product Name

Goose Down Filling Machine

Display Panel

10" HD Touch Screen

System Language

Chinese English Vietnam Turkish Russian

Control System

PLC

Weighing System

6 Channels

Filling Range

0.2-35g

Nozzles Size

19mm 25mm with Air Return

Daily Capacity

400 Plus Down Jackets

Power Supply

1 Phase AC220V 50/60Hz

Air Pressure

0.6-0.8MPa

Air Comperrsor

7.5kw/10HP

Footprint

3000*1500mm(L*W)

Humidity

45-65%

Type

Weighing-Type Filling Machine

Warranty

1-Year Free Spare Parts and Online Technical

Transport Package

Wooden Case

Specification

1 Port 6 Scales

Trademark

FUDA

Origin

China

HS Code

8479899990

Production Capacity

100

Packaging & Delivery

Package Size

185.00cm * 126.00cm * 222.00cm

Package Gross Weight

997.000kg

Product Description

Product Overview 12T6C Automatic Goose Down Filling Machine with 2 Ports 12 Scales. the goose-down filling process of the quality down jacket was made by FUDA, each grid-filling range is around 0.2-35 grams, the average error is 0.1-0.2 grams, and the average daily capacity is around 600-800 jackets. the 2 Heads 12 Scales automatic filling machine is suitable for a 100-150 persons garment factory that focuses on the quality garment process. Products Description Product Advantages Product Parameters Applications Detailed Photos Fuda Profile
