Floor Grinding Machine for Concrete and Stone

Product Description

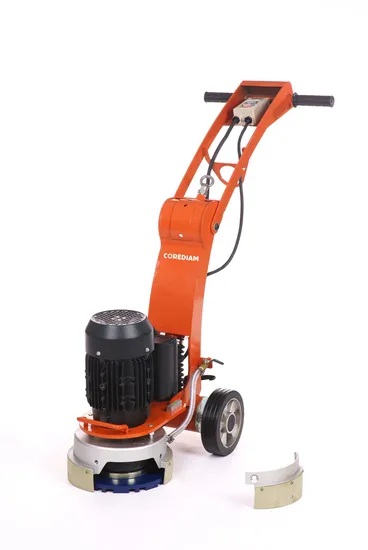

1. GTG250D Floor Grinder introduction
The Floor Grinder is a sturdy, reliable and easy to use machine.
The Floor Grinder is fitted 2.2kw single phase motor. This motor offers a direct drive to the grinding plate with the incorporation of a flexible coupling between the motor and the plate.
Especially convenient for adjusting the direction of the head to better grind the corner, please refer below picture:
The shroud system is unique in design, automatically adjusting to suit segment height and floor angle. This shroud system, when used in conjunction with an appropriate industrial vacuum unit, eliminate dust loss during grinding. The shroud has 2 removable sections to enable the operator to grind close up to the wall etc.
Please note that dust loss is possible when this section is removed.
The Floor Grinder comes complete with a water connection for wet grinding should this be required. This incorporates a ball valve allowing the operator to regulate the water supply to obtain the best grinding results. The rear wheels can also be extended outward should the operator want more stability from the grinder. This requires the use of a 10mm wrench. The operator can also raise or lower the height of the handle to maximize their comfort when using the grinder.
And the new designed lifter system makes operator handy to use.
2.Specification

Model Spec.	GTG250D
Rated Voltage	230V
Power	2.2KW/3HP
Speed	1410rpm
Plate Type	Standard 250mm Grinding Disc or Grinding Plate
Plate Bolt Types	M12x25 Countersunk socket head
Packing Size	750mmx500mmx800mm
G.Weight	70kg
Quantity	145pcs./40 container 70pcs./20container

3.Application
Rough surface grinding different kinds of concrete and masonry materials with superior efficiency.
4.Delivery time
2 week for sample order, and 2-3 weeks for batch orders.
We accept your customized design for the grinding machines.
5.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

---
