HY-1580B Intensive direct drive digital car seat and automotive interior industrial sewing-machine

US$1.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HY-1580B
Condition
New
Certification
CE
Application Place
Factory
Applicable Thickness
Thick Material
Drive
Direct drive
Thread Number
Double Threads
Needle Number
Double Needles
Stitch Type
Lock Type
Transport Package
Wood Case
Specification
1CBM
Trademark
HONYU
Origin
Zhongshan
HS Code
8452211000
Production Capacity
1000pieces/Year

Product Description

WALKING FOOT LEATHER SEWING MACHINE, HEAVY DUTY SEWING MACHINE FOR SOFA

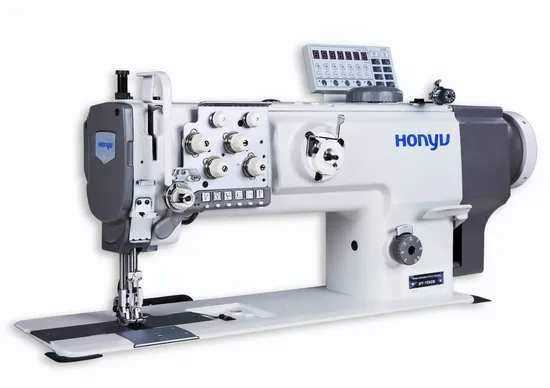

HY-1580B Intensive direct drive, double needle compound feed sewing machine
Model No. HY-1580B
Feeding system Alternating presser foot, feed dog and needle feeding
Max sewing speed 2000 s.p.m
Bobbin diameter Ф28mm
Applied needle DP×17 #18-#23
Thread size Maximum thread 9 strands nylon
Max stitch length 9mm
Max alternating presser foot 6.5mm
Max presser foot lifting height 16mm
Auto trimming ×
Auto bar tacking
Presser foot lifting by air
Auto oil system
Operation space 335×125mm

Product Description:
1. The large operation space ( 335×125mm ) facilitates the handing of large-area workpieces.
2. Internal direct drive servo motor and pneumatic controller components are convenient to install and maintain.
3. It is equipped with automatic back tacking, pneumatic presser foot, integrated LED light, free handle bobbin winder, up and down needle positioning, pneumatic halving outer foot, balance and compensate inner foot, pneumatic second clamp device and other practical functions.
4. Standard DL function, effectively reduce dense needles, broken thread, broken skin problem during climb over thick spots.
5. It can be set two different tension for clamp device by shortcut button and change quickly.
6.Standard metric needle gauge 8mm.
Typical Field of Application:
Topstitch process of the soft-furniture, car seats and automotive interior.
Product Advantages: 1. Pneumatic halving outer foot, balance and compensate inner foot: (1)Pneumatic halving outer foot: Halving device can be opened or closed by shortcut button, when the sewing reaches the position between up and down step, pressing the shortcut button to lift the halving device can make sewing material easier to pass.
(2) Compensate inner foot: When sewing materials with different heights, it can adapt to the height of the material, stitches are more stable.
2. Pneumatic presser foot lifting:The lifting height of the presser foot can be up to 16mm, which is convenient and quick to place the sewing material. 3.DL function: (1)Transform the maximum presser foot alternating amount 6.5mm by one-click.
(2)When the sewing reaches the position between up and down step, pressing the DL switch can transform instantaneously maximum internal and external presser foot alternating amount, it will form a perfect stitch. 4.Pneumatic clamp tool function:It can be set two different tension for clamp device by shortcut button and change quickly, achieve the beautiful stitching of sewing materials from thin to thick material.
