Mini Portable Moving Fiber Laser Marking Cleaning Machine for Metal Non-Metal Huge Material Logo Printing

Product Description

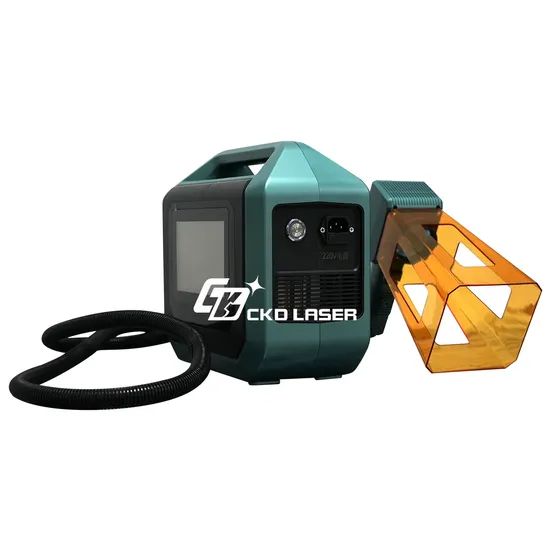

CKD-PLMD-20/30 V22.07 is fiber laser moving marking machine, which has 20W and 30W, with battery for moving marking anywhere. It's mini, portable and easily touch control.
Main features: Portable: 4.5-7.0Kg, fit kinds of situation of application. With battery: it makes the user can move the machine to any place to mark, it also can plug on electricity to use and charge power at the same time. The battery can consciously serve 4-6 hours. Touch control: built-in controller inside the machine, users don't need an extra computer any more. One-click to mark, convenient and easy to learn. Linux system: 8-core processor, high security level, stable performance, and fast response.
Interface of marking software:
Can install different languages:
Parameters:

Parameter	Unit	CKD-PLMD-20	CKD-PLMD-30
Focus way		Fixed focal length
Laser		Fiber laser
Wavelength	nm	1064
Laser power	W	20	30
Marking scope	mm	100*100
Frequency	KHz	30-60
Control system		Linux, touch control
Marking accuracy	mm	<0.001
Mark depth	mm	0.015-0.2	0.015-0.3
Minimum line thickness	mm	0.0012
Minimum character	mm	0.15
Battery	hours	4-6
File		DXF, PLT, AI Automatically change to be 256-bit map after importing picture
Cooling mode		Air-cooling
Electricity		220V, 50Hz

Marking samples:
Dual using:
Besides laser marking, PLMD V22.07 also can be used as a mini cleaning machine after removing the focus holder.

---
