Full Automatic Cross Cutting Machine Online A4-Copier Paper Ream Wrapping Machine

Product Description

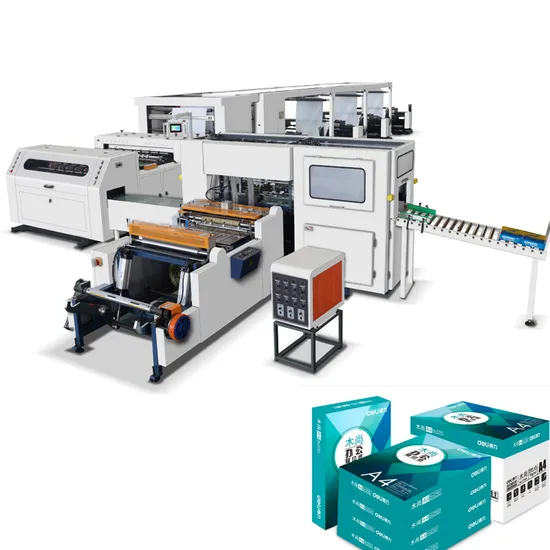

Full Automatic Cross Cutting Machine Online A4-Copier Paper Ream Wrapping Machine
Product Description:
The SCA4 Series A4 copy paper production line is an ideal equipment to begin the A4 copy paper reams business in your local market. The cost of the series machine is noraml and its producing capacity can meet your local market demand. The series machine can cut copy paper rolls to A4 size sheets and automatic pack 500 sheets into reams. The machine operating is easy. Our engineer will provide site installation service and training your operattors to help you begin the A4 business in a short time.
Usage:
The SCA4 series machines specifically designed to cut paper roll into A4 size paper sheets,mainly used to make office A4 copy paper reams.The series has different model with different capacity to meet customer capacity requirements. The capacity is middle level,which suitable to the beginner or small scale business. SCA4-4 model can produce 6 reams per minute. The SCA4-2 model machine can produce 3 reams per minute. All machine can cut 70gsm and 80gsm copy paper.
Feature: 1.Machine Rack: The machine rack adopt Shanghai BaoSteel company as steel raw material. 16mm thickness machine body wall make the machine more stronger and running stale.
2.Aluminum Rollers: All aluminum rolls installed in the machine,which are being dynamic balance testing. Material can smoothly move in these rollers without any scratching.
3.PU-Rollers: The PU rollers are high abrasive resistance,which can insure machine feeding precision.
4.Cylinder Lifter: The jumbo roll material can be easy lift up by the cylinder from the ground. Save labor and easily operating the cutting machine.
5.Motors: The machine adopt one set servo motor and two sets asynchronous motors to drive.It make the machine working with a high level cutting precision(0.2mm error range)
6.Control System: The SCA4 series paper cutting machine adapt intelligent and easy operating control system with Japanese brand PLC. It have automatic counting sheets,automatic stop machine after cutting per batch,automatic detect mother rolls diameter,automatic tension control and so on functions. In the touch screen,you also can check machine working condition parameters.
7.The paper reams are automatic stacking and trimming in the paper sheets collectors.
8.It can connect with automatic reams wrapping machine to get a full production line for A4 ream producing
Application:
Parameter:

Model Name	SCA4 series
Mother Roll Width(Max)	1100mm
Mother Roll Diameter(Max)	1400mm
Mother Roll Weight Capacity	1400kg
Paper Core Size	3inch(customize available)
Cutting Length	297mm(A4)
Cutting Width	210mm(A4)
Thickness Range	60-90gsm
Cutting Precision	±0.2
Cutting Speed	180 cuts per minute
Feeding Rolls	One roll/two rolls/four rolls
Capacity	1.5 reams/3 reams/6 reams

Detail Images:
Customer Factory Tour:
This is a well-known public company for paper products processing. They have three production bases, and we are visiting their label material project base in Shantou City, Guangdong Province today. In this production base, they have a hot melt adhesive coating line, a water-based adhesive coating line, and a thermal paper coating line, plus they have purchased five slitting and rewinding machines. Their products cover, thermal paper, self-adhesive label paper, release paper, Grassian paper, etc.
After-sale Service:
Exhibition Scene:
Company Profile:
Wenzhou Binbao Machinery Co.Ltd leads in manufacturing of paper&film jumbo roll to narrow rolls slitting rewinding machine and roll to sheets cutting machine,for printing and packaging products industry. We develop and build the machinery and the control systems that manage the machinery. It is our mission to offer high level quality machines for the industry. The three founders of the company are all passionate about machinery and have been working in the packaging and printing machinery industry for more than 10 years. They enjoy constantly updating and improving the machinery, and derive pleasure and fulfillment from it. It is because of their love that they have always led the company to develop new models and improve the performance of the machinery, which has been unanimously approved by users all over the world. After more than 10 years of development, the company's production capacity has reached 400 units/year, with an annual sales of more than 10 million dollars.The control systems that manage the machinery. It is our mission to offer high level quality machines for the industry.

FAQ:
Q: What should I do to find the appropriate machine? A: You should offer some info. 1. Material name 2. Material thickness or gsm 3. Max. diameter and width of mother roll 4. Minimum width of finished roll5.Maximum rewinding diameter You also can send your message of your slitting processing to our sales. They will help you find the best solution. Q: How can I operate the machine? A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating videos in our YouTube Channel. Q: What about your after-sales service? A: Call us, email us, or video-chat, we will offer solutions within 24 hours Q: What is your terms of payment? A: We accept many kinds of payment. Please contact us for details. Q: What is your advantage? A: Not only good quality but also good service 1. Over 20 years manufacturer 2. All the accessories made by ourselves. 3. We have our own research and development design team. 4. We accept products customization. 5. 24 hours after-sales service and engineer oversea service.
Packing&Delivery:

---
